FEATURES
> Range up to 250 m
> ± 1.0 mm accuracy, 0.1 mm resolution
> Fast Start-up time – ready in under 1 second
> Bright and clear 2.8” IPS touchscreen with scratch-proof lens
> DIST key on the side for even more intuitive measurements
> Robust according to IP65 and drop tested from 2 meters
> Trigger measurements with gestures
> Memory for 300 reports and 1’000 captured 3D points
> Li-Ion rechargeable battery
> USB-C charging and download of data
> Keyboard simulating data-transfer via Bluetooth®
> Bluetooth® 5.0 Technology for error-free data transfer
> Works with DISTO™ Plan App (iOS and Android) and DISTO™ transfer (Windows)
> P2P measuring with DST 360-X adapter
> Accuracy and Range according to ISO 16331-1
> Digital Pointfinder with 4-fold zoom
SPECIFICATIONS
Accuracy with favourable conditions * 1.0 mm / 1/16" ***
Accuracy with unfavourable conditions ** 2.0 mm / 1/8" ***
Range with favourable conditions * 0.05 – 250 m / 0.07 – 820 ft ***
Range with unfavourable conditions ** 0.05 – 150 m / 0.07 – 500 ft ***
Smallest unit displayed 0.1 mm / 1/32"
X-Range Power Technology Yes
Laser class 2, 635 nm, <1 mW
Tilt measuring range **** 360°
Tilt measuring tolerance ± 0.2°
ø laser point / at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP65 (dust tight and jet water protected)
drop tested from 2 m height -
Auto. laser switch off after 90 s
Auto. power switch off after 180 s
Bluetooth® Smart Bluetooth® v5.0
Range of Bluetooth® Smart up to 10 m
Battery durability (Li-Ion 2 000 mAh) up to 4’000 measurements
up to 8 hours operation time
Dimension (L x W x H) 155 x 68 x 25 mm / 6.1 x 2.68 x 0.98 in
Temperature range storage / operation -25 to 70°C / -10 to 50°C
Weight 230g / 8.11 oz

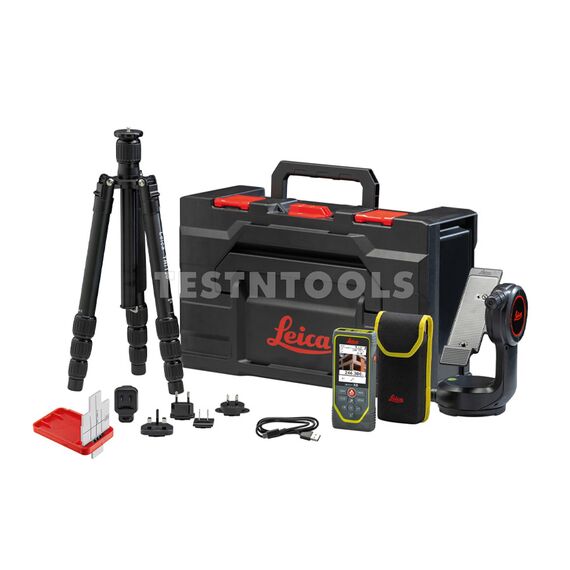

WHAT YOU GET
Leica DISTO™ X6 P2P Package
DST 360-X Adapter
TRI 120 Tripod
GZM 3 Target Plate
Pouch
Charger with Cable
Hand Loop
Quick Start Guide
Warranty Card
Safety Manual
Calibration Certificate Silver
2 YEAR WARRANTY
Go to www.disto.com within 8 weeks of purchase to extend warranty to 3 years at no extra charge
Swiss Technology by Leica Geosystems
