FEATURES
> Unstoppable 18V line laser for high precision in tough conditions
> Easily switch between 18V, 12V, and alkaline C-cell power sources to avoid downtime
> Rubber-enforced housing and laser windows
> IP65 rating
> Integrated mount with strong magnets and pivot fine adjustment
SPECIFICATIONS
Battery voltage 18.0V, 12.0V
Laser diode 500 – 540 nm, < 10 mW
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range, value35m
Working range radius up to 35m
Working range with receiver, value 120m
Working range with receiver radius up to 120m
Accuracy ± 0.3 mm/mᵃ
Self-levelling range ± 4°
Levelling time 3s
Dust and splash protection IP65 (except for the battery or battery adapter)
Power supply 18V Li-ion battery, 12V Li-Ion battery, 4 x 1.5V LR14 (C)
Operating time (max.) 20h (18V 4Ah Li-Ion), 8h (12V 2Ah Li-Ion), 8h (4 x C, energy saving mode) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 1.3 kg
Colour of laser line green
Projection 3 x 360° line
Compatible laser receivers LR7
Weight with 4.0 Ah battery 1.9 kg
Weight with alkaline batteries 1.8 kg

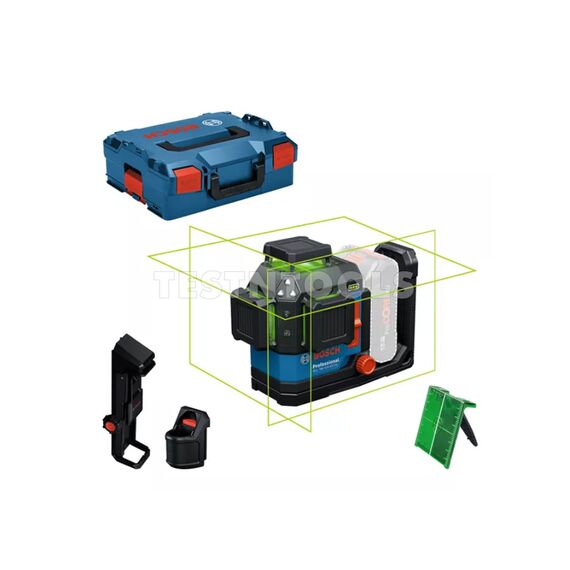

WHAT YOU GET
GLL18V-120-33CG
Battery adapter BA 18-12
Ceiling clip DK 20 Professional
L-BOXX 136
Laser target plate
User manual
6 Year Warranty including Trade upon registration
