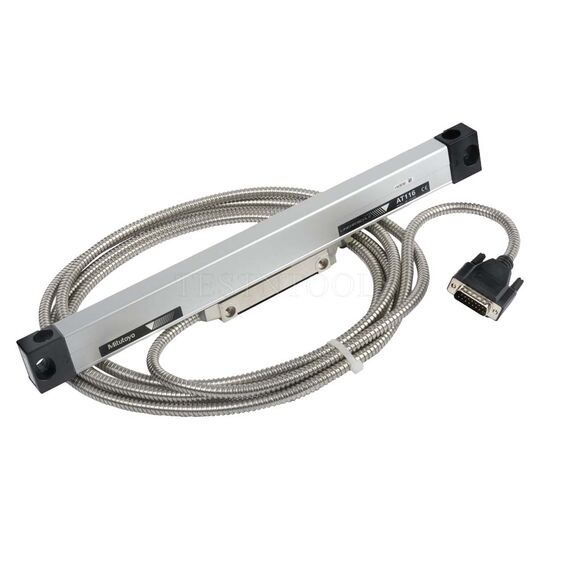

Mitutoyo Linear Scales 1300mm 52" Series AT116 539-290-30

539-290-30
$2,39900
In stock
Shipping Information
Find similar
Description

FEATURES
- Designed to capture positional coordinates from slides on machine tools and precision instruments
- Suitable for milling machines, lathes, XY tables, jigs etc
- Economy and slim spar type
- Dimensionally compatible with AT113 linear scale units.

SPECIFICATIONS
Effective range: 0-52" 0-1300mm
Signal Cable Length: 200"/5m
Accuracy: (20°C) (5+5L0/1000)?m
Resolution: 0.01 to 0.0001mm (0.001" to 0.000005")
Output signal Two 90° phase-shifted sinusoidal signals
Maximum response speed: 50m/min
Signal output pitch: 20µm
Scale reference point Output in 50mm pitch
Protection level: IP53
Operating temperature: 0 to 45°C

WHAT YOU GET
Mitutoyo Linear Scales 1300mm 52" Series AT116 539-290-30
Inspection Certificate

Note: Inspection Certificate is supplied as standard, however this cannot be used as a calibration certificate as it is undated.
