FEATURES
- Uses an Absolute electromagnetic induction system to achieve IP67 environmental resistance
- Design to capture positional coordinated from slides on machine tools and precision instruments including semiconductor production equipment.
- For milling machines, XY tables, jigs, etc.
- Absolute scales have eliminated the need for origin restoration and drastically reduced power consumption
- Detects and outputs the absolute position - no reference point setup needed at each power on
- Abnormal calculations do not occur as a result of electronic noise
SPECIFICATIONS
Effective range: 800mm 32"
Signal cable length: 3.5m
Accuracy at 20 ºC:
±5µm (L0: 100 to 500mm)
±7µm (L0: 600 to 1800mm)
±10µm (L0: 2000 to 3000mm)
L0: Effective range (mm)
Detection method: Electromagnetic induction
Resolution 0.000020"-0.001" (0.0005mm to 0.01mm) on the KA/KLD200 counter
Maximum response speed: 50m/min
Protection level: IP67
Sliding force: 5N or less
Connectable counter: KA Counter/KLD200 Counter
WHAT YOU GET

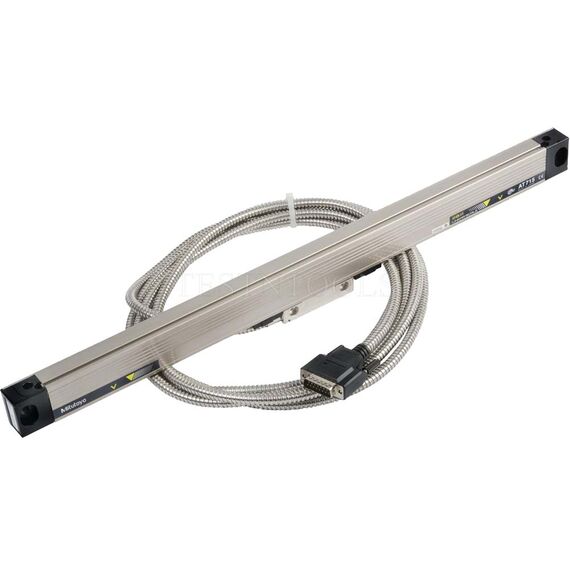

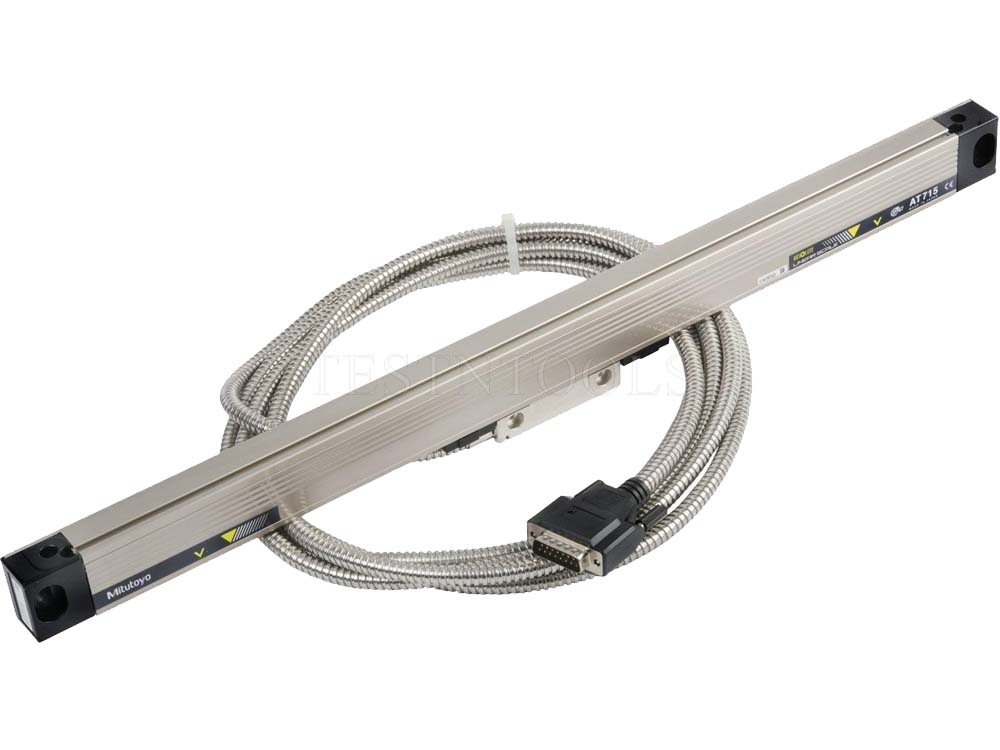

Mitutoyo Linear Scales 800mm 32" IP67 Coolant Proof Series AT715 539-815
Inspection Certificate
