FEATURES
- Series 104 for taking precise outside diameter measurements
- Wide measuring range with interchangeable anvils
- With ratchet stop for constant force.
SPECIFICATIONS
Range: 400-500mm
Graduation: 0.01mm
Accuracy: ±(4+R/75)m, R=max. range (mm)
Flatness: 1µm
Parallelism: (2+R/100)µm
Head stroke 25mm
Measuring face: Carbide tipped
Weight: 4.81kg
WHAT YOU GET

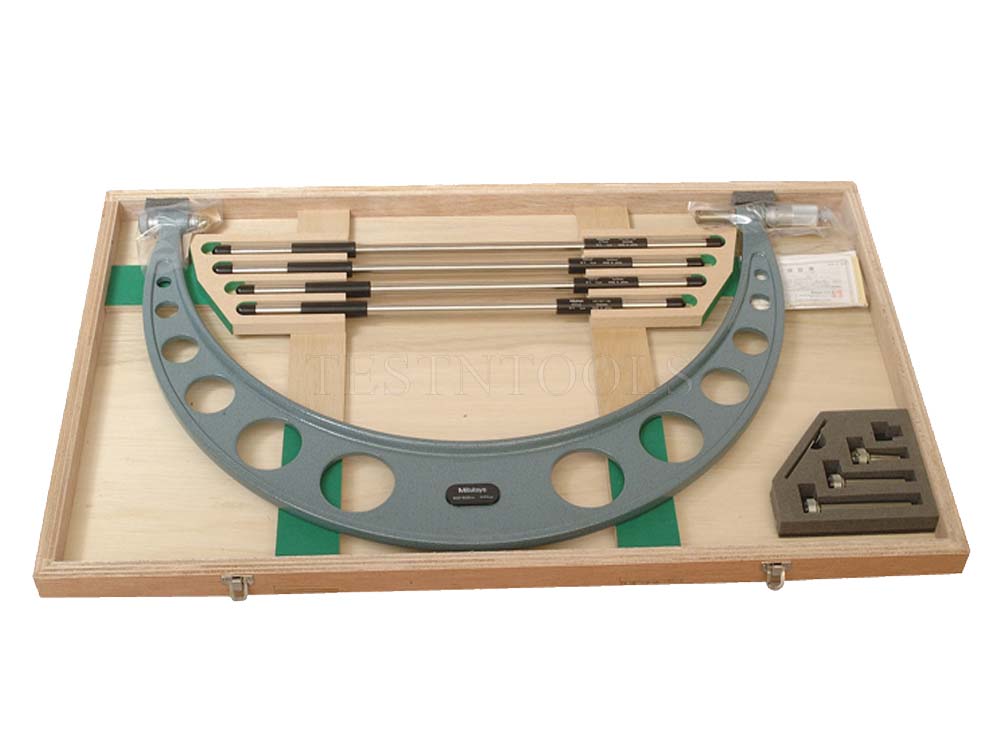

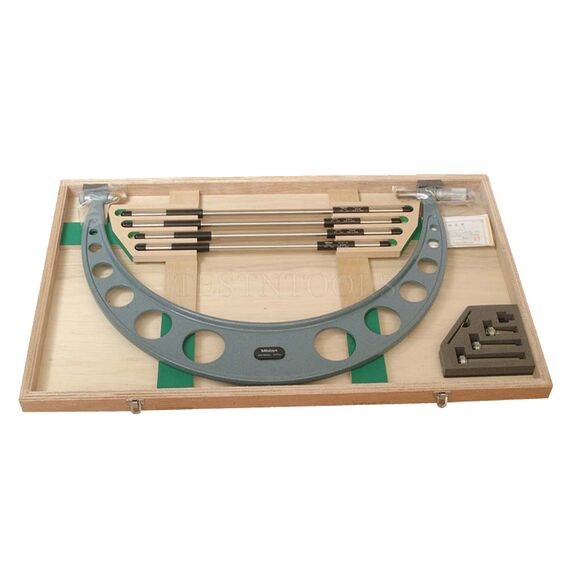

Mitutoyo Outside Micrometer 400-500mm 0.01mm With 4 Interchangeable Anvils 104-143A
Anvils: 0, 25, 50, 75mm
Fitted wooden case
