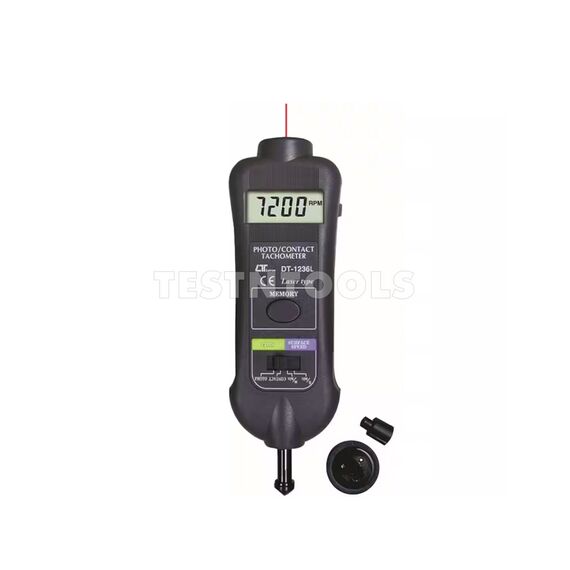

Lutron Laser Digital Tachometer Contact And Optical DT1236L

T31314
$50900
In stock
Shipping Information
Find similar
Description

A great tool to measure the revolutions per minute of shafts, pulleys, wheels, blades, centrifuges etc without losing a finger.

This is a high quality unit that comes with a calibration certificate certified to ISO9001 standards.

NON-CONTACT
A short length self adhesive reflective tape is attached to the shaft, pulley or wheel etc to be measured. The light beam is then aimed at the tape and the tachometer receives the reflections and RPM is displayed and continuously updated.

CONTACT MODE
For measuring shaft rpm, and linear velocity in m/min, ft/min. Cone, wheel and funnel adaptors are included to mate to various shaft sizes and shapes.

SPECIFICATIONS
Photo Tachometer: 10 to 99,999 rpm
Contact Tachometer : 0.5 to 19,999 rpm
Surface Speed :
  m/min. - 0.05 to 1,999.9 m/min
  ft/min. - 0.2 to 6,560 ft/min
Resolution RPM
  0.1 RPM (< 1,000 RPM)
  1 RPM (1,000 RPM)
Resolution m/min.:
  0.01m/min. (< 100 m/min)
  0.1m/min. (100 m/min)
Resolution ft/min.:
  0.1 ft/min. (< 1,000 ft/mn)
  1 ft/min. (1,000 ft/mn)
Display 5 digits, 10 mm ( 0.4" ) LCD
Accuracy ± ( 0.05% + 1 digit ), RPM only
Detecting distance 5 cm to 200 cm typically
Light Source 1 mW class 2 laser diode.
Time base Quartz crystal.
Operating temperature 0 - 50 (32 - 122)
Operating humidity Less than 80% R.H.
Memory Last/Max./Min. value

Powered by 4 x 1.5V AA (UM-3) batteries
Size 215 x 67 x 38 mm
Weight 280g (0.61LB)


FEATURES
> Laser tachometer for longer range
> Range covering 0.5 to 100,000 RPM
> Surface speed 0.05 to 2000 m/sec
> Memory – Last/Max/Min
> 5 digit LCD- reverses when using for contact measurement
> Accuracy 0.05%
> Includes carry case


SUGGESTED USES
Performance engine tuning
Industrial process control
Farming applications (PTO speed)
Manufacturing machinery testing
Compressor testing

12 Months Warranty
