This item has a 4-week lead time. Please contact us.

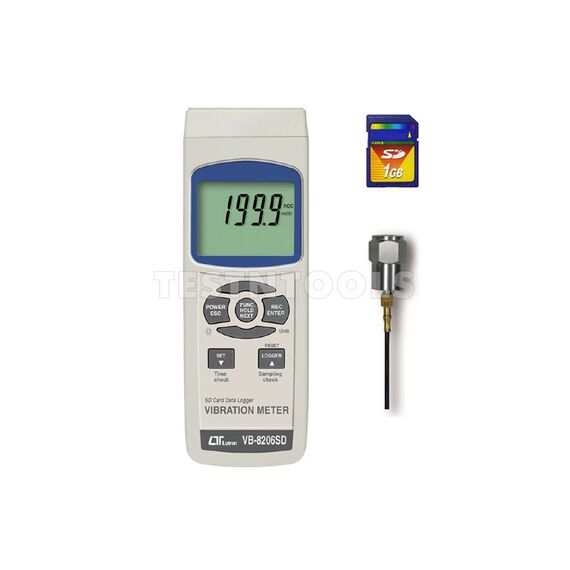

The Lutron VB-8206SD is your machine’s cheeky little lifesaver—spotting vibrations from 10–1000 Hz, logging everything to an SD card, and tattling when something’s off balance. If your gear’s groovin’ too hard, it’s maintenance time!
FEATURES
> Professional vibration meter supply with vibration sensor & magnetic base
> Metric & Imperial display unit
> Acceleration, Velocity, Displacement measurement
> RMS, Peak value, Max. hold measurement
> Max. Hold reset button, Zero Button
> Wide frequency range
> Easy to operate and easy reading
> RS232/USB PC Computer interface
> LCD with green light backlight
> Data hold button to freeze the desired reading
> Data logging to SD card at intervals 2-3600 seconds
> Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954
> Memory function to record maximum and minimum reading with recall
> Separate vibration probe with magnetic base
> Real time SD memory card Datalogger
> Manual datalogger is available
SPECIFICATIONS
Acceleration 0.5-199.9m/sec²
Velocity 0.5-199.9mm/sec
Displacement 0-1.999mm
Accuracy +/-5% +2 digit
RMS, Peak and Max hold functions
Auto zero button
Frequency 10 Hz to 1 KHz
Memory Card SD memory card 1GB to 16GB
Powered by 6 x 1.5V battery UM-3, AA or DC 9V adapter
Size 203 x 76 x 38 mm
Metre weight 515g
Probe weight 99g
WHAT YOU GET
Lutron Vibration Meter VB8206SD
Vibration sensor with cable
Magnetic base
User manual
