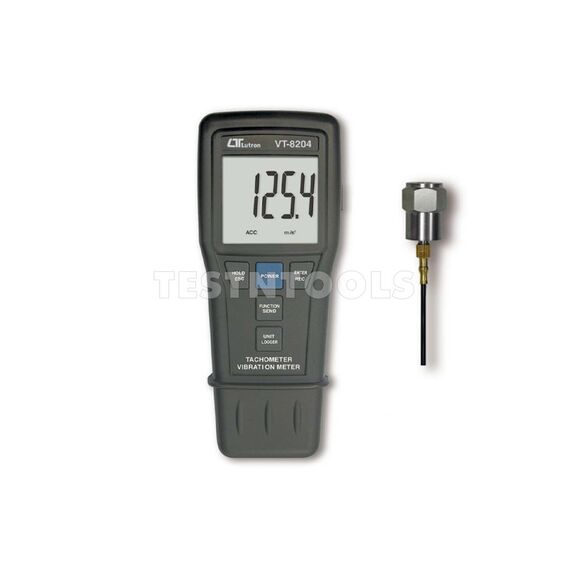

Meet the Vibration Tachometer VT-8204 - the "doctor" for your machines. It tracks vibrations, measuring acceleration and displacement. If your equipment starts shaking too much, it's a sign to give it some TLC. Poor balance? Misalignment? Time for maintenance!
GENERAL FEATURES
> Measures Acceleration, Velocity, and Displacement
> Independent laser optical and contact tachometer
> Super large LCD display
> No contact infrared temperature measurement via optional IR temp probe
> RS 232 computer interface
> High performance Microcomputer circuit
> Built-in low battery indicator
> Heavy duty & compact housing case
> Complete set with the hard carrying case
> Perfect for condition monitoring of rotating machinery and bearings
> Certified ISO-9001, CE, IEC1010
VIBRATION FEATURES
> Metric and imperial display unit
> Applications for industrial vibration monitoring
> RMS measurement for acceleration and velocity
> Peak to peak measurement for displacement
> Peak function for acceleration and velocity
> Max. hold function for acceleration(peak), velocity(peak) and displacement(peak to peak)
> Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954
> Memory function to record maximum and minimum reading of RMS value or displacement(p-p)
> Zero function executed by front buttons
> Data logger function with flexible sampling time selection
> Can save max 1000-point data into the memory circuit
> Data hold button to freeze the desired reading
> Auto shut off saves battery life
TACHOMETER FEATURES
> Laser light detecting source, long measuring range up to 1.5 meters
> 2 in 1 function: one instrument combine Photo Tachometer and Contact Tachometer
> Wide measuring range from 0.5 to 100,000 RPM
> Microprocessor based circuit, crystal time base, high precision with 0.05% accuracy
> Memory with recall function
> Patented
SPECIFICATIONS
Acceleration range 0.5 to 199.9 m/s^2
Velocity range 0.5 to 199.9 mm/s
Displacement (p-p) range 0.005 to 1.999 mm
Photo Tachometer 10 to 99,999 RPM
Contact Tachometer 0.5 to 19,999 RPM
Data Logging Max 1000 points into memory
Accuracy +/-5% + 2 digit on vibration readings; +/-0.05% + 1 digit on RPM
Display 45 mm x 48 mm LCD size
Circuit Exclusive microcomputer circuit
Powered by 4 x 1.5V battery, UM-3, AA, R6
Size 46.8 x 75.5 x 188 mm
Metre weight 397g
Probe weight 110g
WHAT YOU GET
Vibration Tachometer VT-8204
Vibration sensor (VB-82)
Magnetic base
Reflecting tape marks (600 mm)
RPM cone rubber, AS-35A
RPM funnel rubbe, AS-35B
Carrying Case
User manual
