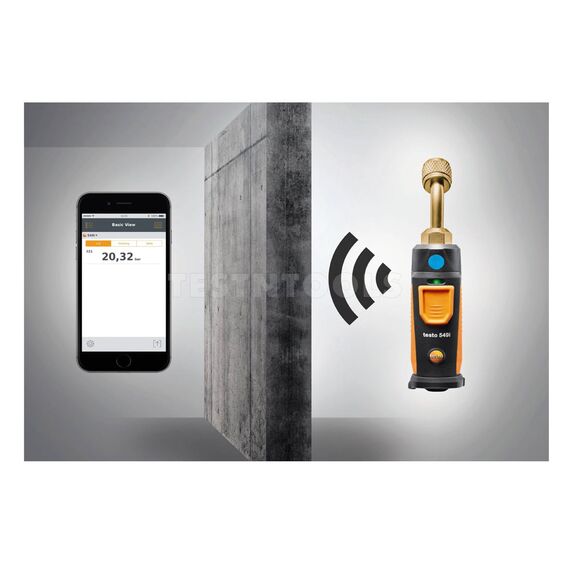

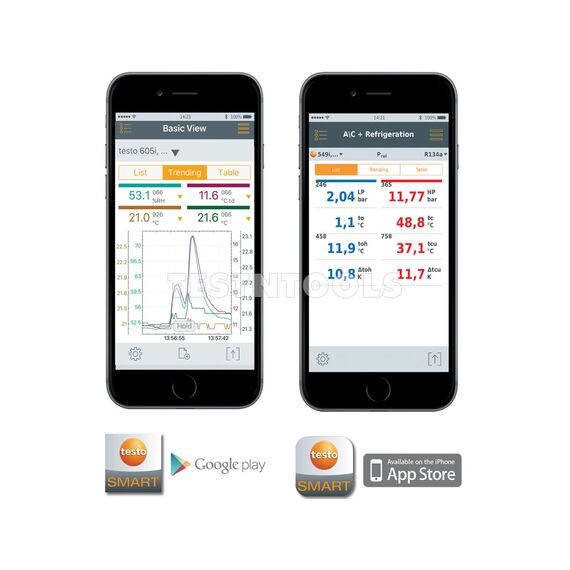

The Testo 549i High Pressure Meter instrument can be controlled via the Testo Smart Probes App using your smartphone or tablet, and is ideal for carrying out servicing and troubleshooting on air conditioning and refrigeration systems. The App also enables evaporation and condensation temperatures to be calculated automatically.
The Testo 549i High-pressure measuring instrument is now with 45° angled connection for easier mounting. It is practical, no hoses are required for measurements, meaning that no or only very little refrigerant is lost. When used in conjunction with the Testo 115i clamp thermometer, individual refrigeration system parameters can also be calculated.
FEATURES

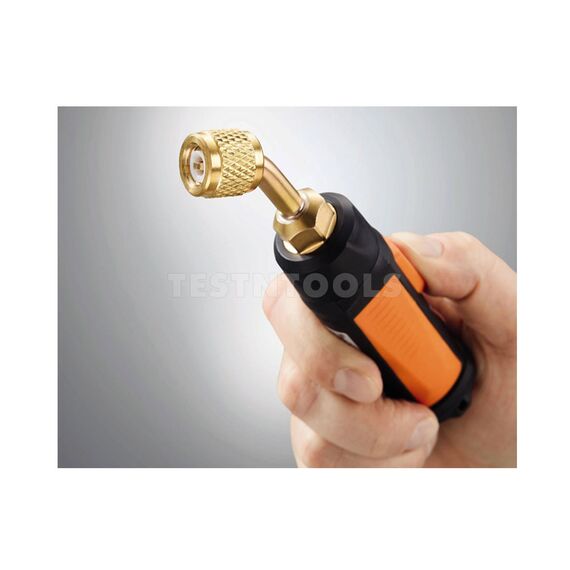

- 45° angled connection for easier mounting
- Measurement of high and low pressure
- Quick and easy installation at the pressure connection
- Low refrigerant loss

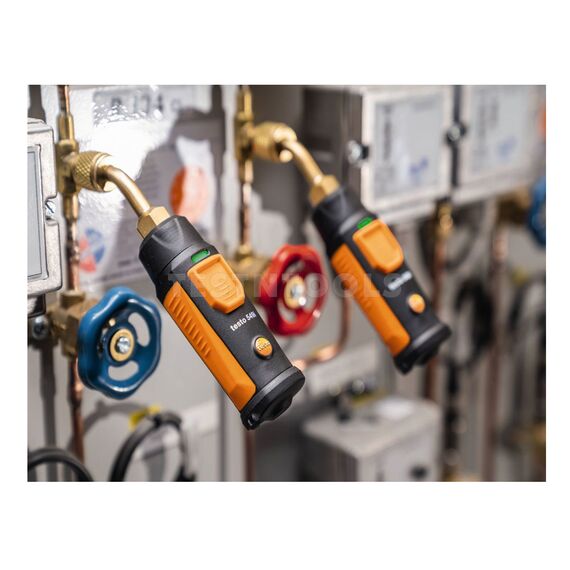

- Wireless servicing and troubleshooting on air conditioning and refrigeration systems
- Problem-free use at measuring points that are a long distance apart Bluetooth range up to 100m
- Pressure media: CFC, HFC, HCFC, N, H₂O, CO₂
SPECIFICATIONS
Pressure range -1 to +60 bar
Accuracy ±0.5 % of fsv
Resolution 0.01 bar
Probe connection 7/16" UNF
Overload rel. high pressure +65 bar
Operating temperature -20 to +50 °C
Bluetooth range up to 100 m
Dimensions 125 x 32 x 31 mm
Battery life 150 hours
Battery type 3 x AAA
SYSTEM REQUIREMENTS
iOS 8.3 or later
Android 4.3 or later
Bluetooth 4.0
WHAT YOU GET
Testo 549i High Pressure Meter With Smartphone Operation
Batteries
Factory Calibration Certificate
User manual
Model 0560.2549.02
Replaces 0560.1549
