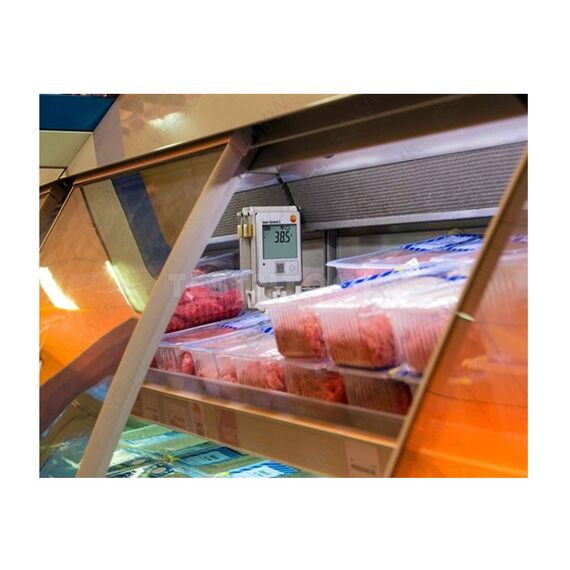

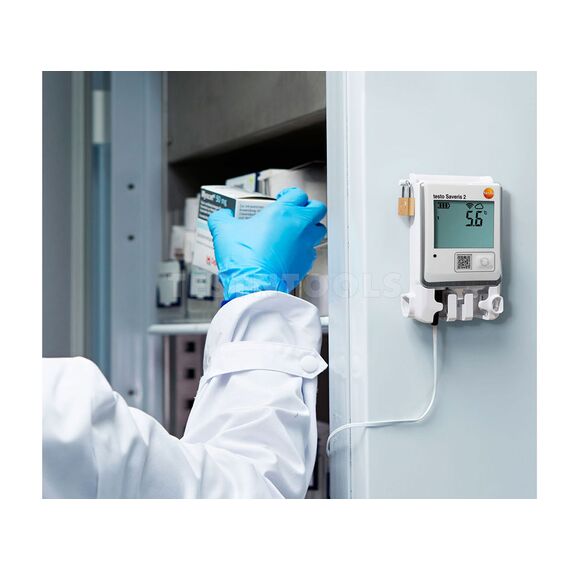

The Testo Saveris 2-T1 WiFi Data Logger System is the easy, versatile and reliable solution for the measurement and monitoring of temperature values in your storage, refrigerated and work rooms. The temperature values measured with the integrated probe are reliably recorded over long periods, and transmitted directly to the Testo Cloud (online data store) via your wireless LAN. It is tested by TÜV Süd according to EN 12830.
The Testo Cloud is the core operating element for setting up your Testo Saveris 2 system. Here you can configure your WiFi data loggers, set limit value alarms and analyze your measurement data. You can access all measuring values and analysis functions anywhere and at any time with an internet-capable smartphone, tablet or PC. You must first register at www.saveris.net to have access to the Testo Cloud.
FEATURES
- Automated temperature monitoring with integrated probe
- WiFI data logger system with easy installation and operation
- Call up temperature data at any time via Smartphone, tablet or PC
- Limit value violation alarms by e-mail or (optionally) SMS
SPECIFICATIONS
Temperature range -30 to +50 °C
Accuracy ±0.5
Resolution 0.1 °C
Protection class IP65
Memory 10,000 measurement values/channel
Operating temperature -30 to +50 °C
Battery life 12 months
Battery type 4 x AA AlMn
Dimensions 95 x 75 x 30.5 mm
Weight 240g
Dependent on Cloud licence:
Communication rate Basic: 15 min … 24 h / Advanced: 1 min … 24 h
Measuring rate Basic: 15 min … 24 h / Advanced: 1 min … 24 h
WLAN Connectivity Signal transmission: wireless; frequency band: 2.4 GHz; supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: without encryption, WEP, WPA, WPA2, WPA2 Enterprise - The data loggers communicate via the standard protocol MQTT and are SNTP time synchronization-capable.
The Testo Cloud Package: Basic (free)
Measuring cycle 15 min. ... 24 h
Communication cycle 15 min. ... 24 h
Data storage Max. 3 months
Reports Manual (.pdf/.csv)
Number of users per account 1
Number of WiFi data loggers per account Unlimited
Alarm options Upper/lower alarm limits
System notifications Notification of low battery, Radio link interrupted, Power supply interrupted
E-mail alarm Yes
SMS alarm No
Measurement data export (API interface) Yes
The Testo Cloud Package: Advance
Measuring cycle 1 min. ... 24 h
Communication cycle 1 min. ... 24 h
Data storage Max. 2 years
Reports Manual (.pdf/.csv), Automatic (.pdf/.csv)
Number of users per account 10
Number of WiFi data loggers per account Unlimited
Alarm options Upper/lower alarm limits, Alarm delay, Time control of alarms
System notifications Notification of low battery, Radio link interrupted, Power supply interrupted
E-mail alarm Yes
SMS alarm Including 25 SMS per logger and year, Option of purchasing additional SMS packages
Measurement data export (API interface) Yes
WHAT YOU GET
Testo Saveris 2-T1 WiFi Data Logger
Free Cloud Access (basic functionality)
Micro USB Cable
Wall bracket with lock
Batteries (4 x AA AlMn Mignon)
Short Instructions
Factory Calibration Certificate
User manual
Model 0572.2031
Note:
In order to use the WiFi Data Logger System Testo Saveris 2, registration in the Testo Cloud (www.saveris.net) and a wireless LAN-capable network are absolutely necessary.
