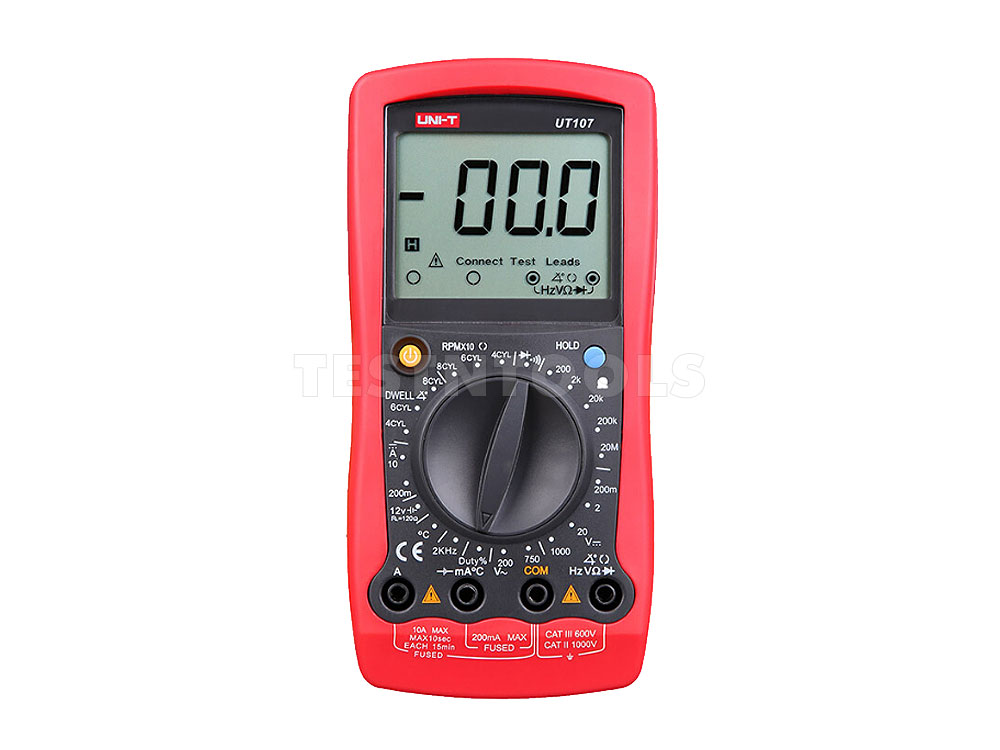

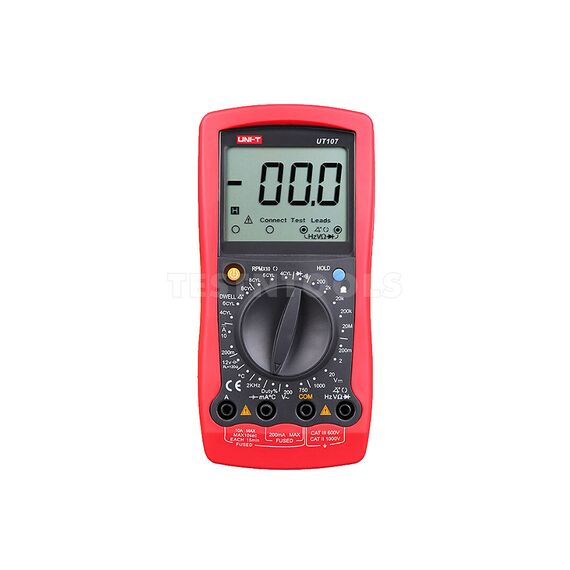

The UT107 Digital Automotive Multimeter effectively helps to diagnose problems with the electronic components of an automobile. It is used to diagnose any trouble with a fuse, switch, solenoid, relay, starting and charging systems, ignition system, fuel system and engine sensor.
FEATURES
- CAT III 600V / CAT II 1000V rating
- Temperature Measurement
- 2000 Display Count
- Solenoid or Relay Testing
- Load-Free Battery Testing
- Battery Power Consumption Test when the Engine Is off
- Voltage Drop Testing
- Switch Testing
- Trigger Voltage Battery Load Testing
- Continuity Testing
- Dwell/Tach Testing
SPECIFICATIONS
DC voltage 200mV/2V/20V/1000V ±(0.5%+2)
AC voltage 200V/750V ±(0.8%+5)
DC current 200mA/10A ±(0.8%+5)
Resistance 200?/2k?/20k?/200k?/20M? ±(0.8%+5)
Frequency 2kHz ±(2%+5)
Temperature -40°C~1000°C ±(2%+8)
Powered by 9V
Size 179mm X 88mm X 39mm
Weight 315g

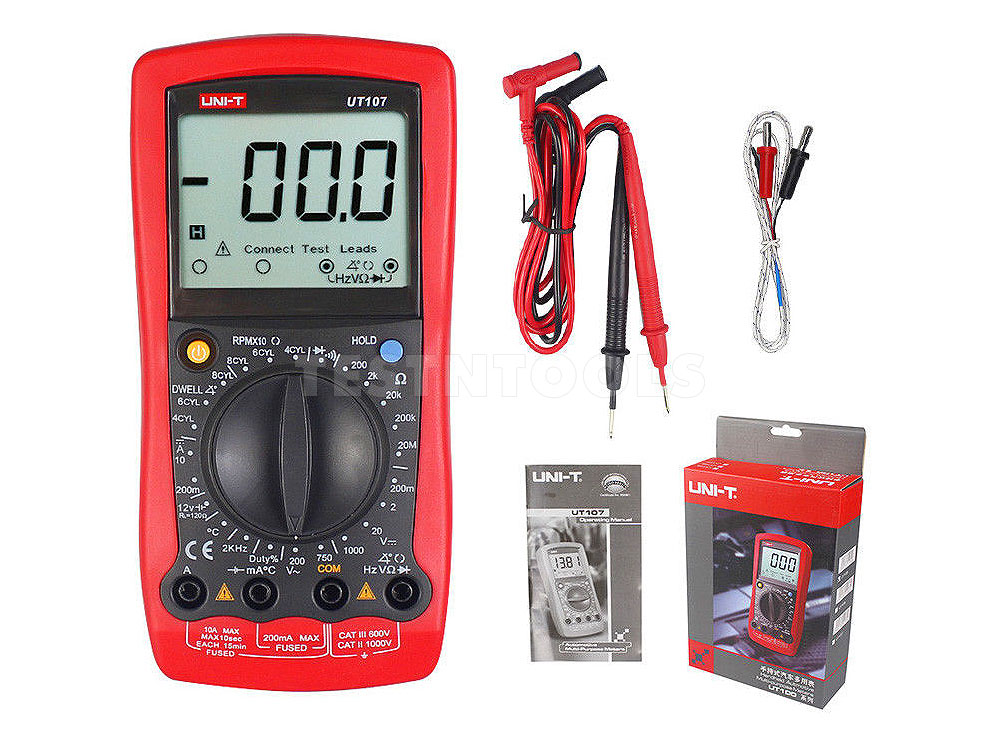

WHAT YOU GET
1 x UT107
Test leads
Point contact temperature probe
Holster
Battery
Manual
Warranty 12 months
