Uh oh did your hoist controller get squashed? It happens sometimes...

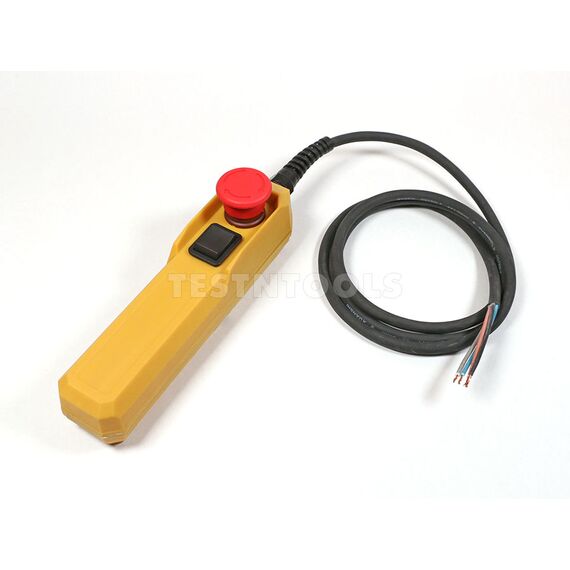

These pendants are direct replacements for our Liffu electric hoists and can be used on other hoists if the pendant looks the same. We can supply wiring diagrams for hoists supplied by us only, for others contact the Supplier of your hoist. Does not include the start capacitor but that can usually be changed over from your existing pendant (check the sizing).
Must be installed by a registered electrician. Take photos before changing over the wiring to make sure it's connected correctly!
Compatible with
Liffu Electric Chain Hoist 230V 3m 150Kg
Liffu Electric Chain Hoist 230V 3m 300Kg
Liffu Electric Chain Hoist 230V 6m 300Kg
Liffu Electric Chain Hoist 230V 3m 500Kg
Liffu Electric Chain Hoist 230V 6m 500Kg
Liffu Electric Chain Hoist 230V 3m 1000Kg 1 Ton
SPECIFICATIONS

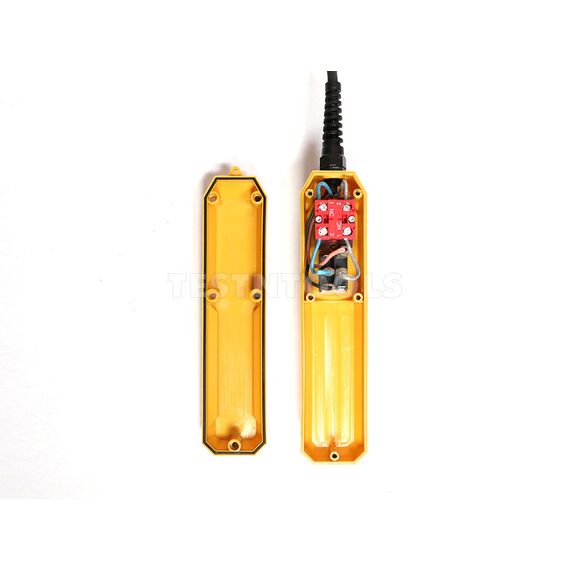

Momentary ON/OFF/ON up/down rocker switch
Switch rating 20A 250V AC
Switch cutout 22.5 x 30.5mm
Strain relief cable gland
Emergency stop button
Cable length 1.7m
Pendant is IP55 rated
Does not include motor start capacitor.
Will accept capacitors up to 45mm dia. x 112mm long
Spare parts are not returnable so please choose carefully.
