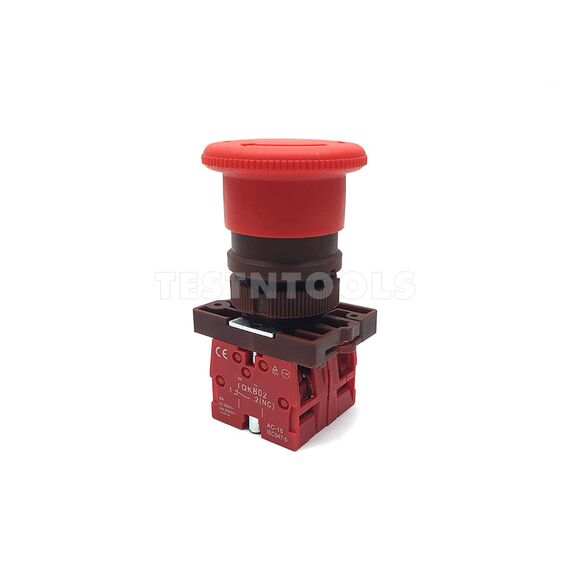

This is a replacement emergency switch for our Liffu electric hoists. It may be used on other brands but make sure the mounting hole is the correct size and keyed so the mechanism doesn't spin when the switch is operated.
The push-to-operate action opens both switches hence cutting power to the hoist when activated. To reset the button is twisted clockwise and the internal spring will pop it out again.
To mount to the keyed hole the switch must be disassembled. When taking apart take careful note of how it goes together, taking photos as you go will help with reassembly.
COMPATIBLE WITH
Liffu Electric Hoist 230V Wire Rope 18m 800Kg PA800
Check with us for compatibility with other Liffu hoists
TO INSTALL

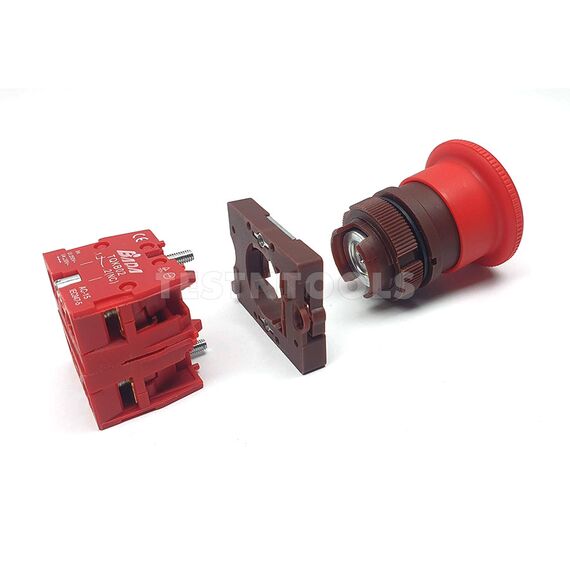

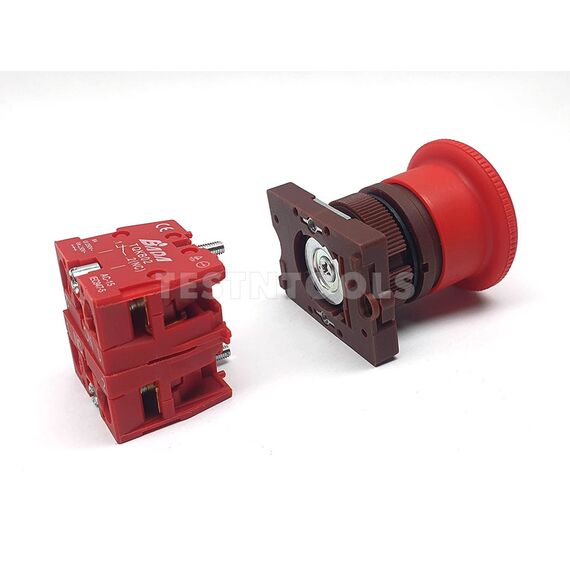

1. Remove the 2 Philips screws holding the switches in place.
2. Carefully unclip the rectangular retainer.
3. Unscrew the retainer nut.

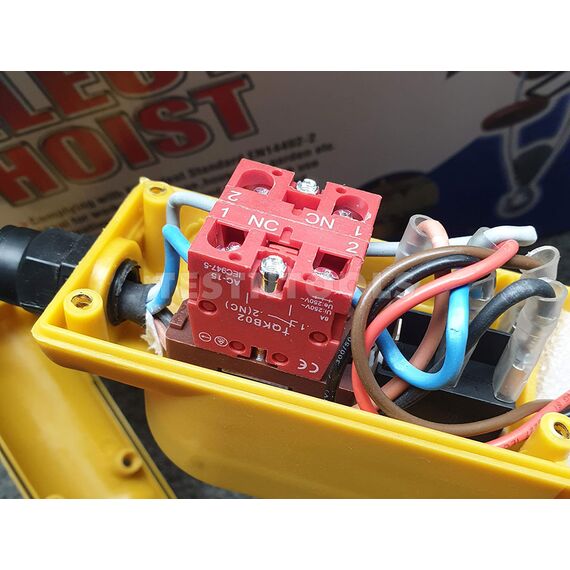

4. The pushbutton assembly can now be mounted and the switch reassembled in the reverse order of above.
SPECIFICATIONS

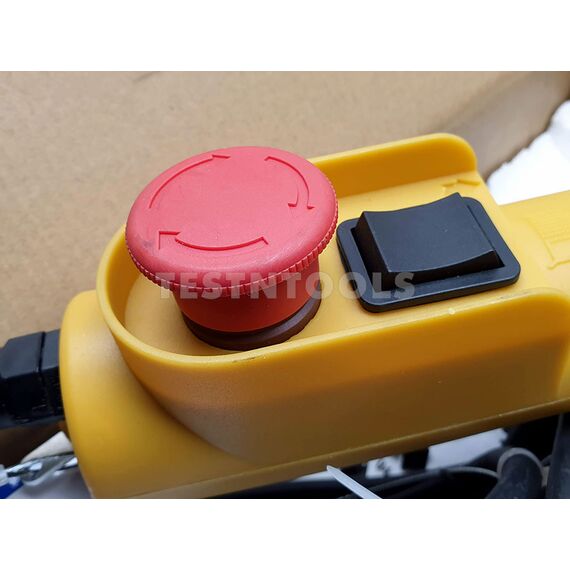

Push to stop
Twist to reset

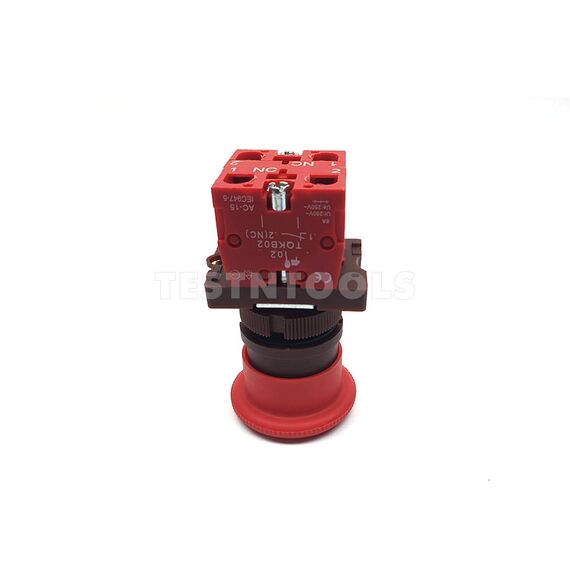

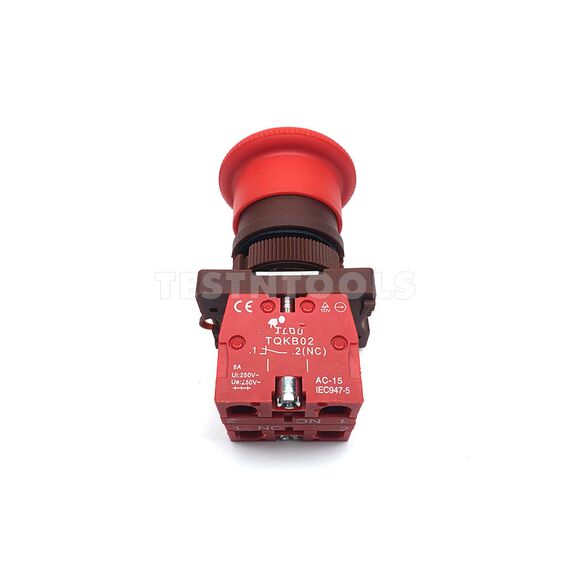

2 normally closed switches (2NC)
Rated at 8A 250V AC
Captive screw terminals

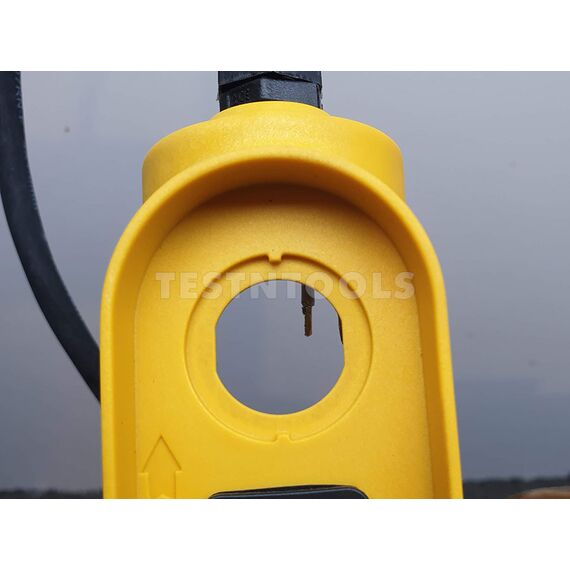

Keyed mounting hole 22mm dia.
NOTES
> Repairs to 230V hoists should be carried out by a registered electrician.
> Spare parts are not returnable so please choose carefully.
