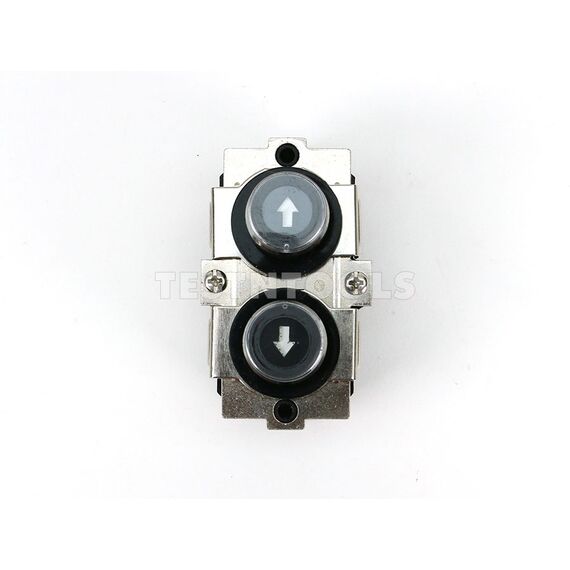

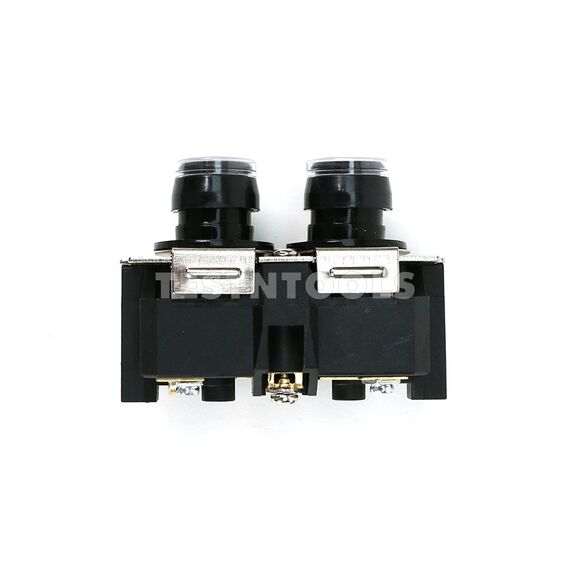

Liffu Momentary Up Down Pushbutton Switch DPDT 16A 250V

This is a heavy-duty up/down switch as used in some of our Liffu Electric Hoists. The physical interlock prevents both buttons from being pressed at the same time ensuring safe electrical operation.

SPECIFICATIONS
Momentary DPDT pushbutton switch
Rated at 16A 250V AC

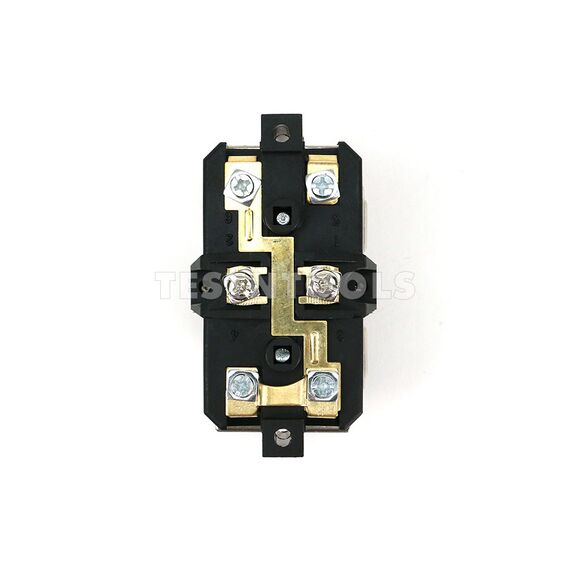

Removable motor reversing connection links
Screw terminals
Size 82L x 61H x 48W mm

COMPATIBLE WITH
Liffu Electric Hoist 230V Wire Rope 18m 1000Kg PA1000
Liffu Electric Hoist 230V Wire Rope 18m 1200Kg PA1200


NOTES
Repairs to 230V hoists should be carried out by a registered electrician.
Spare parts are not returnable so please choose carefully.
