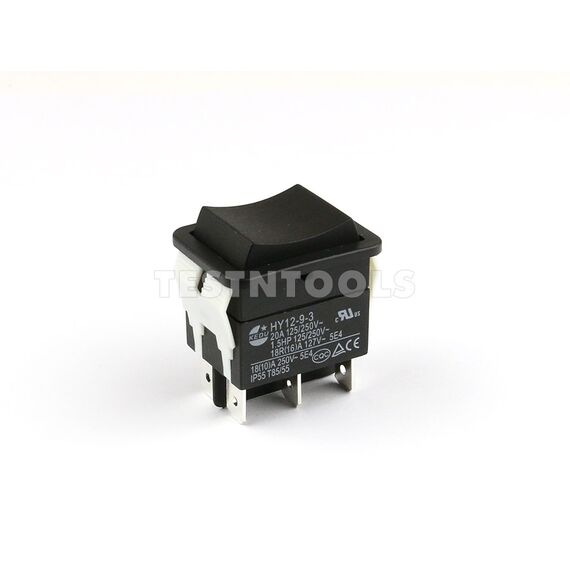

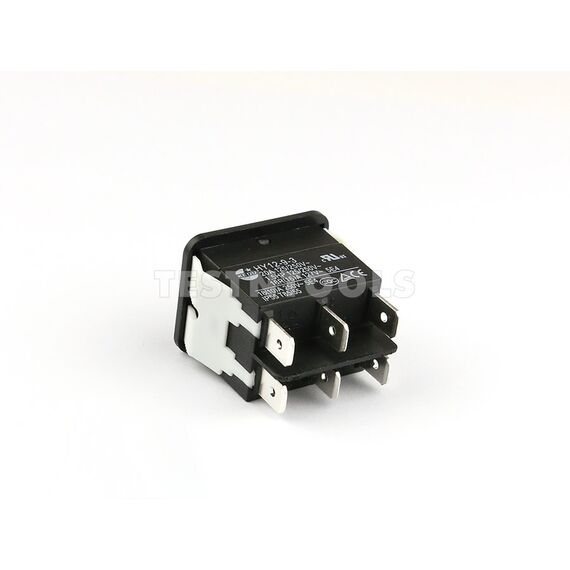

This is a heavy-duty up/down switch rated at 20A as used in our Liffu Electric Hoists. It has an internal dust and water protection seal giving it an IP55 rating. It can be used to replace the switches in other brands' mini electric hoists that often only have 16A switches which don't last as long under heavy use.
SPECIFICATIONS
3 position momentary DPDT
Rocker action ON/OFF/ON
Rated at 20A 250V AC
1.5HP 250V AC
IP55 protection
6.35mm (1/4") spade terminals
Mounting hole size 22.5 x 30.5mm
COMPATIBLE WITH
Liffu Electric Chain Hoist 230V 3m 300Kg
Liffu Electric Chain Hoist 230V 6m 300Kg
Liffu Electric Chain Hoist 230V 3m 500Kg
Liffu Electric Chain Hoist 230V 6m 500Kg
Liffu Electric Chain Hoist 230V 3m 1000Kg 1 Ton
Liffu Electric Hoist 230V Wire Rope 18m 200Kg PA200
Liffu Electric Hoist 230V Wire Rope 18m 300Kg PA300
Liffu Electric Hoist 230V Wire Rope 18m 800Kg PA800
Liffu Electric Scaffold Hoist 230V Wire Rope 18m 300Kg HH300
NOTES
Repairs to 230V hoists should be carried out by a registered electrician.
Spare parts are not returnable so please choose carefully.
