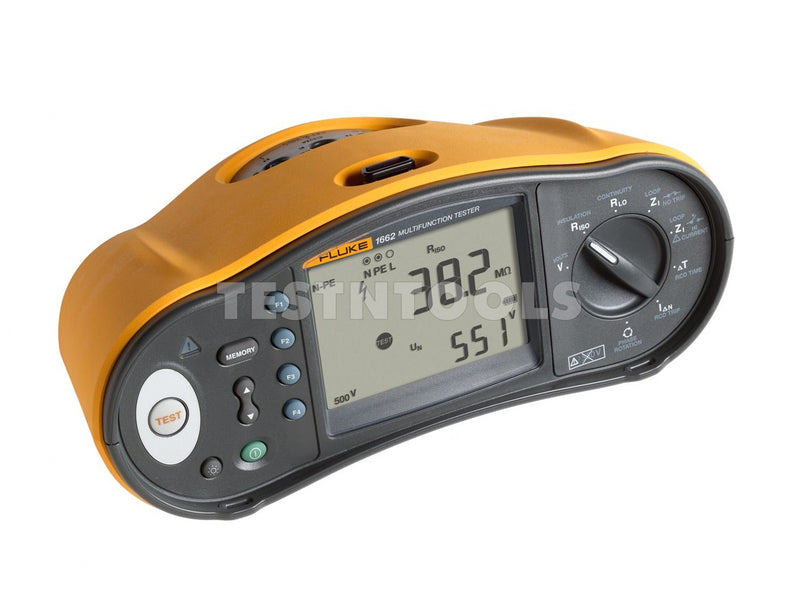

Fluke 1662 Multifunction Installation Tester

SKU FLUKE-1662
Save $430.00 Save $430.00
$2,679.00
$2,679.00 - $2,679.00
$2,679.00
$2,249.00
$2,249.00 - $2,249.00
$2,249.00
Availability:
Low stock

Orders will be sent 26/08/2026

PRICE INCLUDES GST

The Fluke 1662 Multifunction Tester allows New Zealand registered electricians to perform the minimum tests required on an electrical installation as per AS/NZS 3000:2018 Electrical installations - Wiring Rules, section 8.

> Earth continuity 8.3.5
> Insulation resistance 8.3.6
> Polarity 8.3.7
> Correct circuit connections 8.3.8
> Earth Fault Loop Impedance (EFLI) 8.3.9
> Operation of RCD's 8.3.10

Operation is intuitive for all skill levels. Features like On/Off switchable auto-start for RCD and loop test, and self-test save time and give you confidence in your results. One button testing reduces test times by up to 40%.

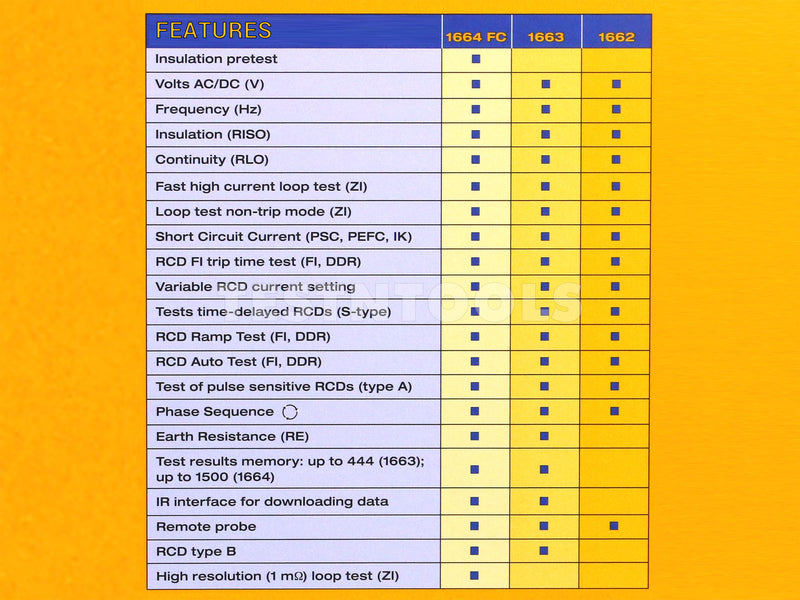

FEATURES
> Continuity test
> Checks wiring polarity to detect broken N wires
> Insulation Resistance (IR), loop, and line resistance testing

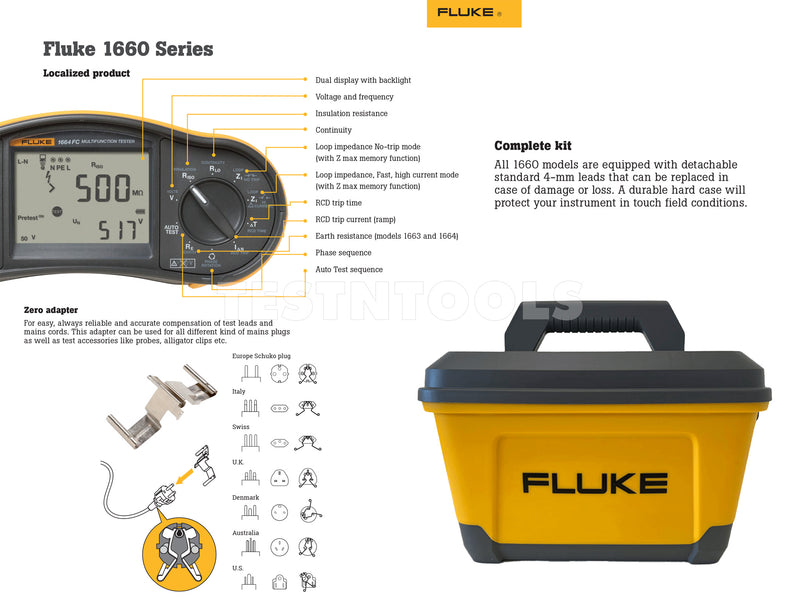

> Zero adapter for mains cord resistance compensation
> Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
> RCD switching time and tripping level (ramp test)
> RCD trip time and current for A & AC type RCD's
> Measures RCD variable current
> Automatic RCD test sequence
> Phase sequence test (phase rotation)
> Safety-rated CAT III 500V, CAT IV 300V

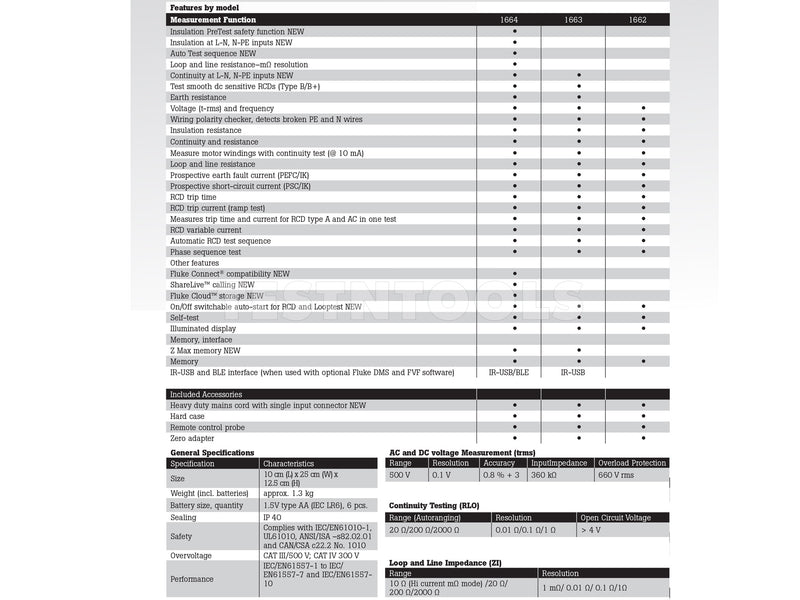

KEY SPECIFICATIONS
AC voltage range 0-500V
Resolution 0.1V
Accuracy (45-60Hz) 0.8% + 3
Input impedance 360k ohms
Overload protection 660V rms
Ohms auto-ranging  20 / 200 / 2000 ohms
Insulation resistance test voltages 50 / 100 / 250 / 500 / 1000 Volts
Loop and line impedance (ZI) range 10 / 0.001 ohms / high current m ohms
Prospective earth fault current test 1000A / 10kA (50kA)
RCD types tested A, AC, G, S
RCD test multiplier x1/2, x1, x5 with ramp test
RCD trip test current 10-1000 mA in 6 ranges
RCD/FI tripping current ramp test 30% to 110% of rated RCD current
Overvoltage CAT III / 500V; CAT IV 300V
Protection class IP40

Powered by 6 x AA batteries (included)
Weight including batteries 1.3Kg
Size 100L x 250W x 125H mm

WHAT YOU GET

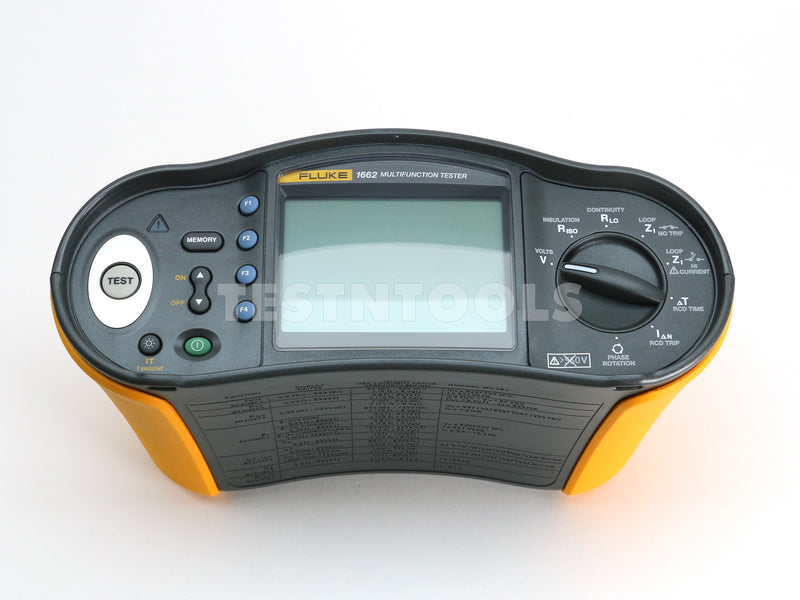

> Fluke 1662 Multifunction Installation Tester

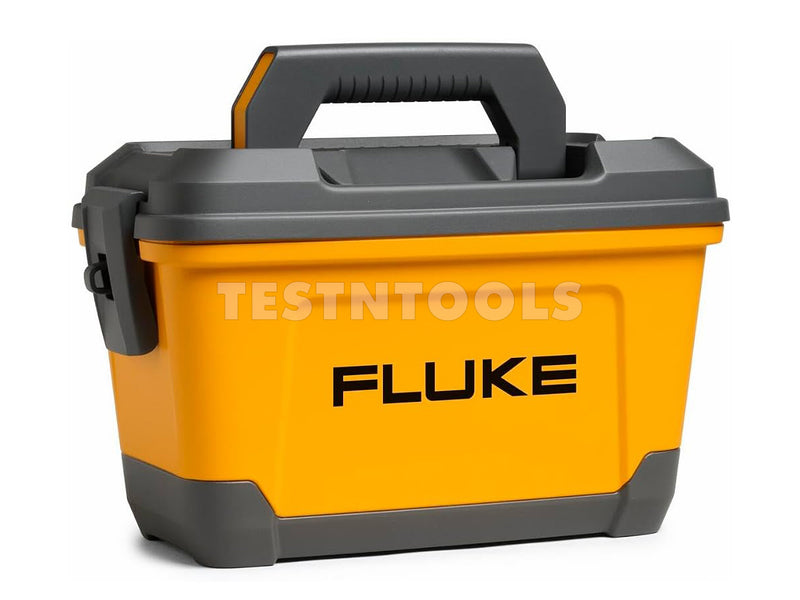

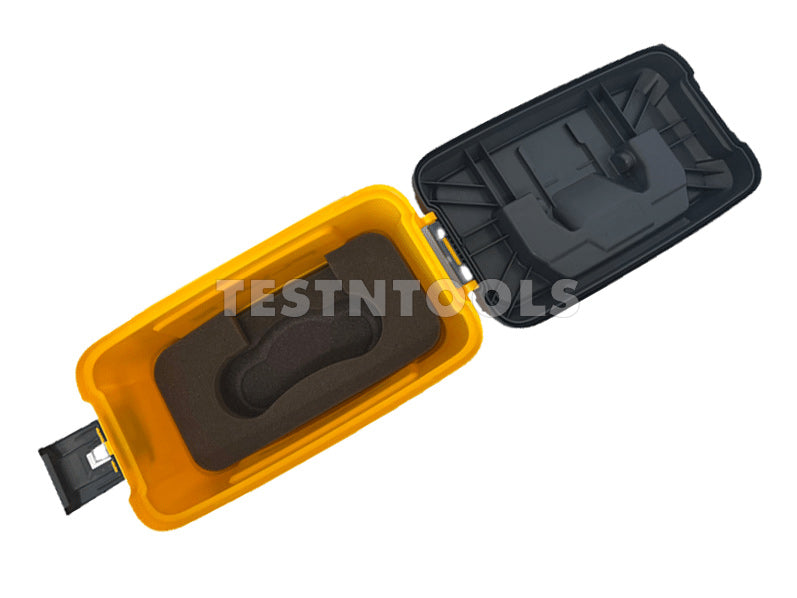

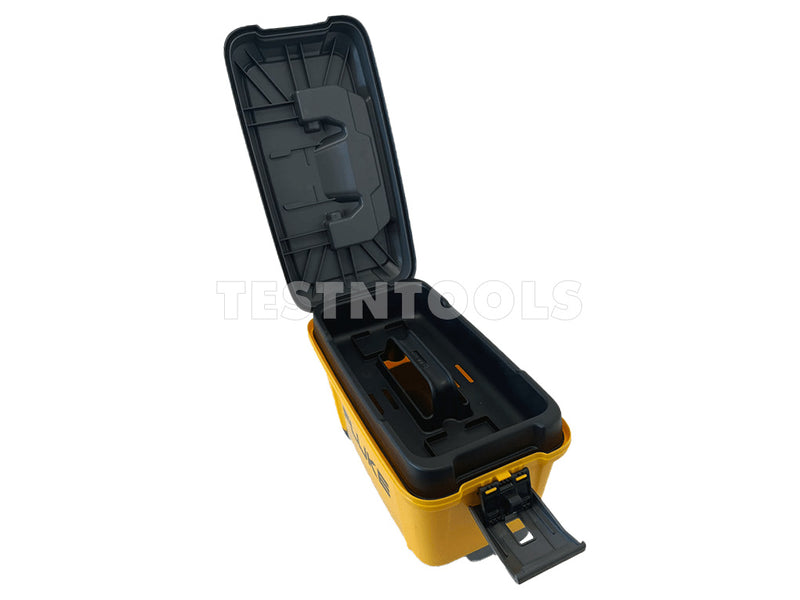

> C1600SF heavy-duty padded plastic carry case

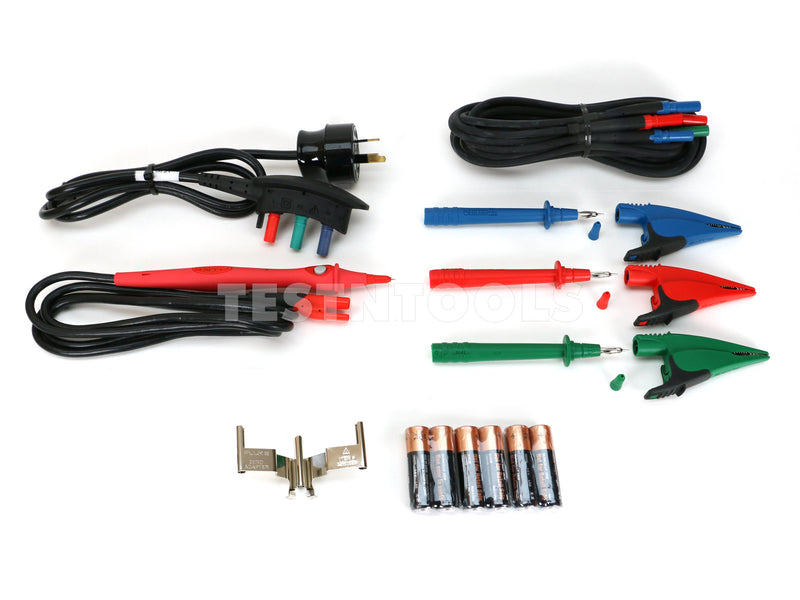

> FLK-166X Heavy-duty mains test cord
> TP165X slim probe with test button
> PNE test probe set with alligator clips
> Mains plug zero adapter 3261925
> Duracell Industrial AA batteries
> Fluke factory calibration certificate
> Padded carry strap
> Quick reference manual

3 Year Fluke Warranty
