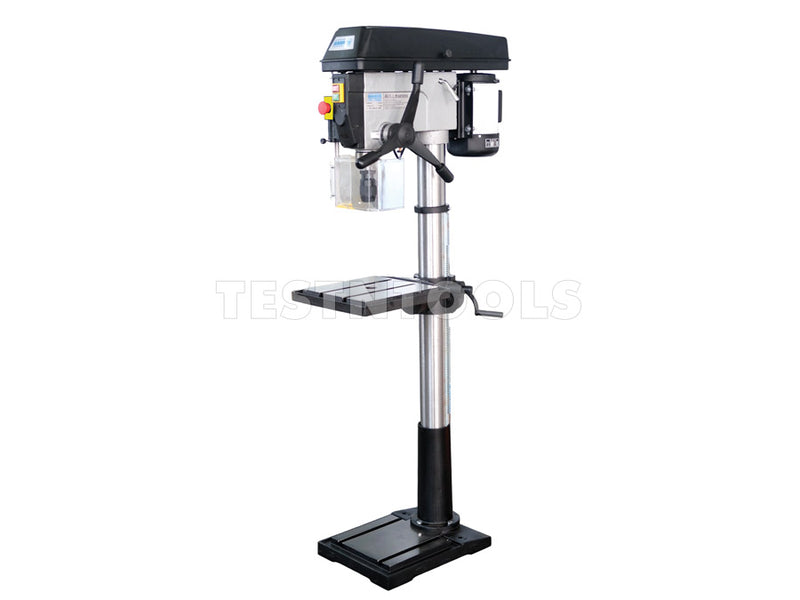

Garrick Industrial Pedestal Drill Press 25mm 1100W DP25-I

Garrick Industrial Pedestal Drill Press 25mm 1100W DP25-I

SKU DP25-I
Save $150.00 Save $150.00
$1,430.00
$1,430.00 - $1,430.00
$1,430.00
$1,280.00
$1,280.00 - $1,280.00
$1,280.00
Availability:
in stock, ready to be shipped

IMPORTANT SHIPPING INFORMATION
This is a heavy item that must be delivered by truck. The delivery charge calculated at checkout applies to town and city CBD business addresses only (and local freight depot if applicable). It does not cover working from home business addresses. Check with us if you are unsure if your address qualifies or want a quote for delivery to a home or rural delivery address.


NEW IMPROVED INDUSTRIAL VERSION - This drill press is the premium version suitable for heavy-duty use in industrial workshops. Specifically designed for long motor-running, continuous use applications. The unique 'V' section head is engineered to house larger bearings for greater arbor support and drilling accuracy.


ADDITIONAL FEATURES
> More powerful S1 continuous duty rated motors, aluminium
housing
> Zero voltage switches
> Laser guides
> Keyless chucks
> Micro switch safety guard with flip up cover over chuck
> Emergency stop switches


FEATURES
> Ideal for industrial applications
> V head design with larger spindle bearing
> 'A' section V-belts & pulleys
> T-slots for solid workpiece clamping
> Tilting and rotating table
> Solid one-piece cast iron feed handle
> Square table for larger work area
> Heavy-duty precision depth stop
> Rack and pinion table height adjustment
> Quick action positive motor adjustment for belt tensioning
> Column and quill precision machined from thick wall tube for rigidity
> Work light under head (bulb not included for transport reasons)
> Powerful 240V aluminium TEFC motors


SPECIFICATIONS
Motor (S rated) 1100 W
Pedestal type drill press
Maximum drilling capacity 25mm
Keyless chuck size B16 1-16mm
Swing 440mm
Spindle taper MT3
Spindle travel 120mm
Spindle-column distance 220mm
Spindle-table distance 765mm
Spindle-base distance 1225mm
No. of Speeds 12
Speed Range 150-2450 rpm
Overall height 1710mm
Column diameter 92mm
Quill diameter 52mm
Table size 350 x 350mm
Carton Dimensions 1410 x 660 x 295mm
Weight 100kg nett / 104kg gross


WHAT YOU GET
Garrick Pedestal Drill Press 25mm DB25-I
Drill Chuck and Arbor
Chuck Key
Drill Drift


NOTES
^ This is the maximum recommended capacity for a standard twist drill. Much higher diameters can be drilled with tct holesaws.
> Please read the User Manual before use and tighten the v-belts.
