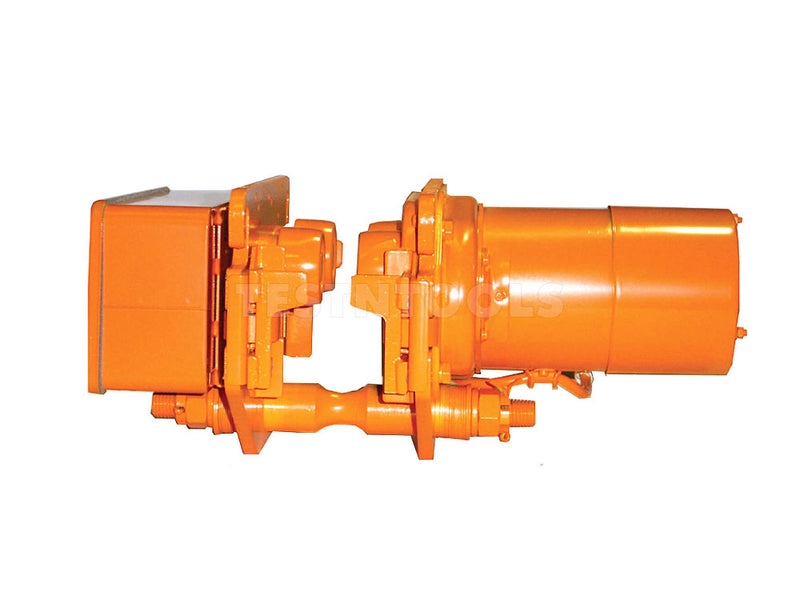

Hitachi Electric Trolley 1 Ton 3 Phase HET100

FEATURES

• Can be combined with a 4-point or 6-point pushbutton and used as a motorized trolley or overhead traveling crane.
• The electric chain hoist with a chain-driven trolley is suitable for relatively heavy loads not transported a long distance.
• The electric chain hoist with a manual-driven trolley is suitable for relatively light loads transported a short distance.
• Trolleys are fitted with Guide Rollers as standard to reduce wear and ensure suitability for curved beam applications.

SPECIFICATIONS

• Rated Capacity 1 ton
• Girder width 75-125mm
• ET Speed m/min 10.5 single speed
• Motor 0.14kw 3 phase
• Weight 38kg
• Min Radius 1.5m

Larger girder widths are available on request, please contact us to enquire.
Please contact us if you require a longer pendant cable, this can be modified to meet your criteria.
