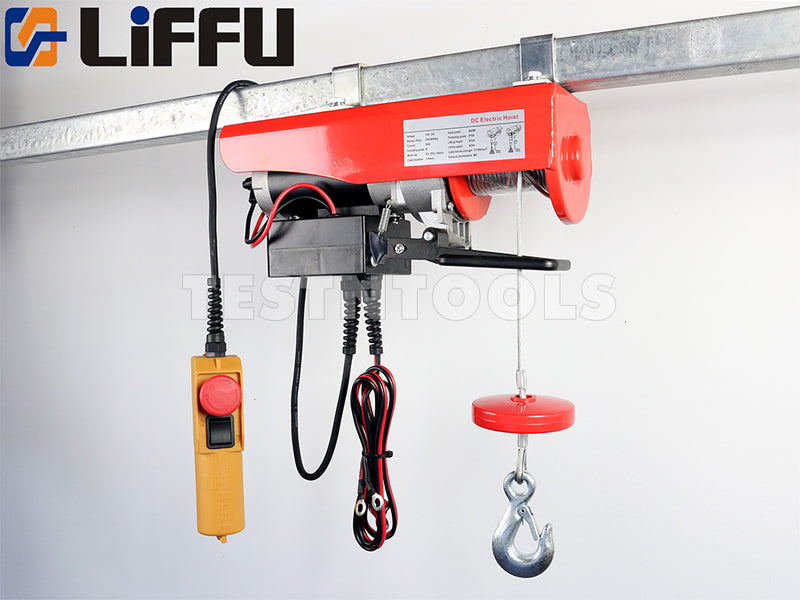

Liffu Electric Hoist 12V DC Wire Rope 6m 400Kg

This hoist runs from 12 volts DC so it's great for any application where mains power is not available. It can be used with your ute, tractor, 4-wheeler, motorhome, boat etc to load and unload your gear. Also handy for off-grid sheds or houses with solar power.

This is a very different machine compared to an ordinary 4WD recovery winch. This is a HOIST which is rated for LIFTING.

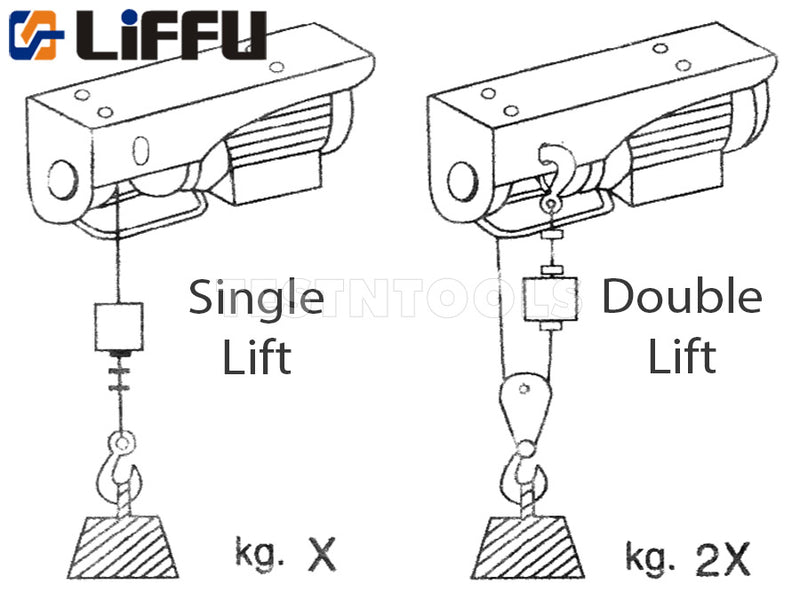

The maximum lifting capacity is achieved when the rope is doubled over with the included pulley hook. In a single rope configuration, the capacity is halved and the speed is doubled. The electromagnetic brake is released when the up/down switch is pressed making it fail-safe if power is lost.

FEATURES
> Up/down switch
> Emergency stop
> Up overrun protection
> Electromagnetic brake
> Cable strain relief
> Hook ballast

SPECIFICATIONS
Capacity 200Kg single rope, 400Kg double rope
Lifting height 6m single, 3m double
Lifting speed 4m/min single, 2m/min double
Motor 12V DC 30A 400W
Pendant cable length 1.6m
Size 350L x 120W x 160H mm
Weight 10Kg

STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS

INCLUDES
Electric hoist

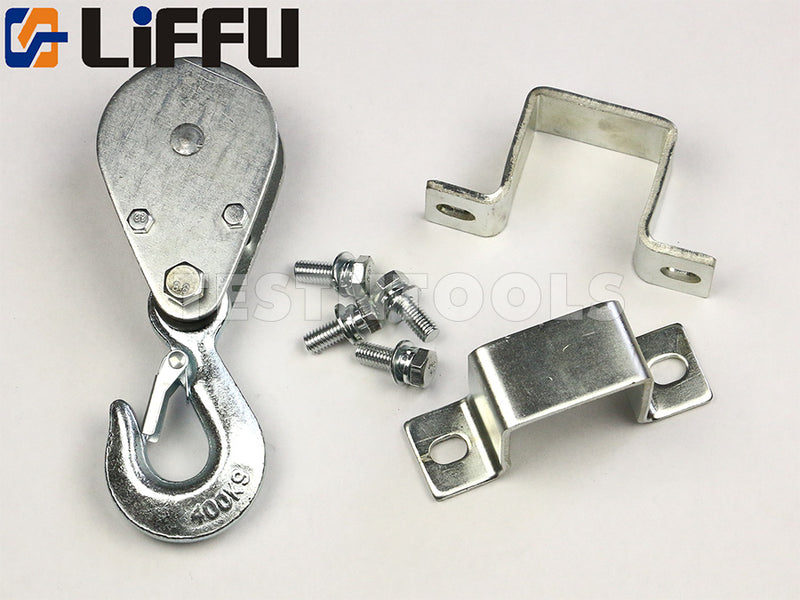

Pulley hook for double rope operation

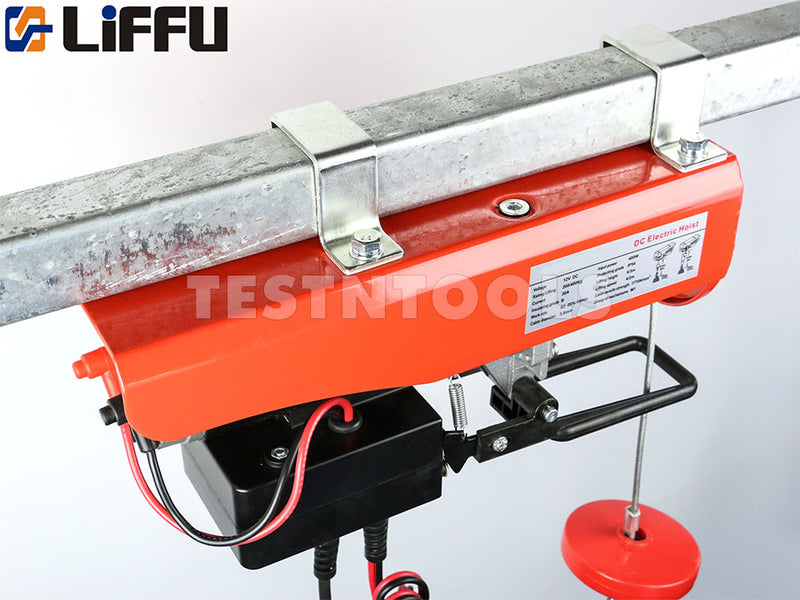

Mounting brackets and bolts
User manual

What's the difference between and HOIST and a WINCH?

HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg

Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
