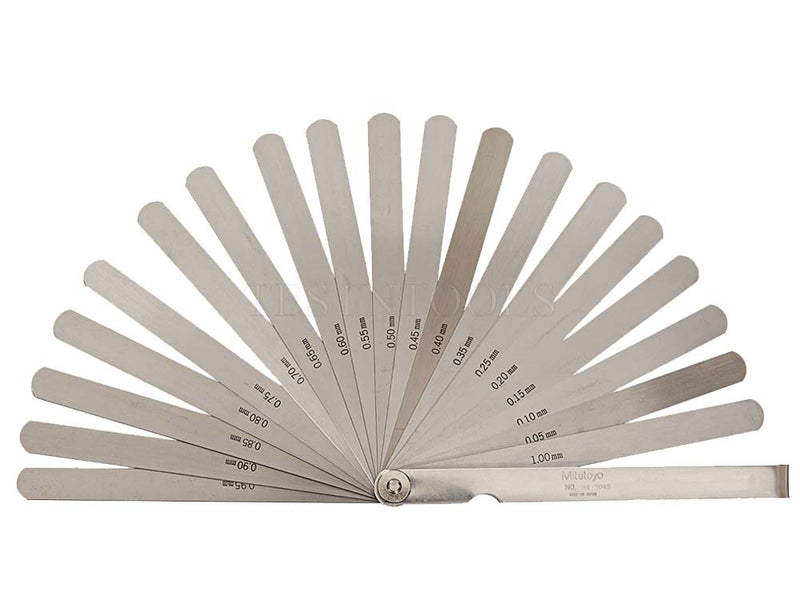

Mitutoyo Thickness Feeler Gauges 0.05-1mm 20 Long Leaves 184-304S
SKU 184-304S
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$190.20
$190.20
-
$190.20
Current price
$190.20
Availability:
in stock, ready to be shipped
FEATURES
- Each leaf is marked with its thickness
- Each leaf is detachable
SPECIFICATIONS
Range: 0.05-1mm
Length: 150mm
Number of leaves: 20
Type of blade: straight 13mm width
Composition: 0.05-1mm by 0.05mm
Accuracy of Leaves Thickness
Nominal Thickness Tolerance
0.01mm to less than 0.06mm: ±0.003mm
0.06mm to less than 0.10mm: ±0.004mm
0.10mm to less than 0.35mm: ±0.005mm
0.35mm to less than 0.65mm: ±0.008mm
0.65mm to less than 3.0mm: ±0.01mm
WHAT YOU GET
Mitutoyo Thickness Feeler Gauges 0.05-1mm 20 Long Leaves 184-304S
