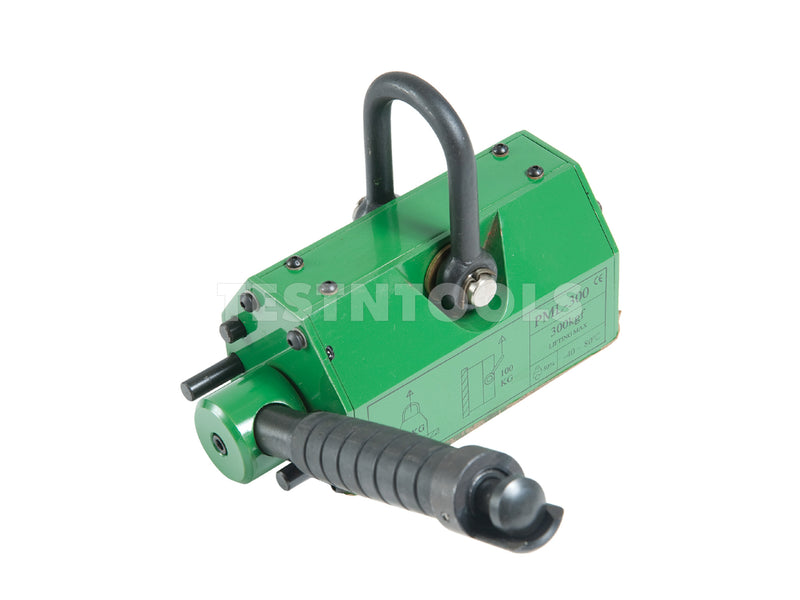

Pacific Magnet Lifter 1T PML-1000

FEATURES
> Breakaway force 3.5 times greater than the working load limit
> No electricity needed, less than 1% residual magnetism
> Allows for one handed operation with switch and safety button
> Use of plate with high-carbon content will reduce the absorbability to less than 50% of rated capacity
> No need to use slings, clamps or other holding devices due to magnetic force
> For lifting and moving of steel, engine parts, semi-manufactured goods and moulds in various industries

SPECIFICATIONS
Rated Capacity 1T (1000 kg)
Cylindrical Carrying Capacity 500 kg
Max. Break-away Force 3500 kg
Net Weight 50 kg
Suitable Thickness of Plate >50 mm
Plate Material ≤45# steel
Carbon Content Low

Model PML-10
Code MAG100

NOTE
Use of a plate with high carbon content is not recommended
