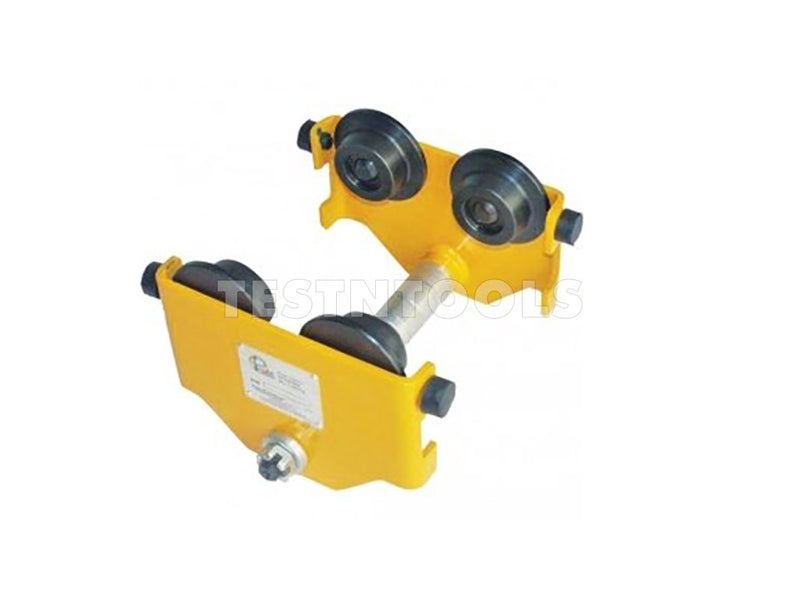

Pacific Push Girder Trolley 1.5T 1500Kg PPT315HK

FEATURES
> Generation 3 push girder trolley
> Fully adjustable to suit various beam widths
> Complies with Australian Standard AS1418.2
> Anti-drop tabs for improved safety and compliance
> High-quality construction for an economical price
> High-grade, fully sealed bearings for maintenance-free extended life
> Extra-wide beam pin kits available

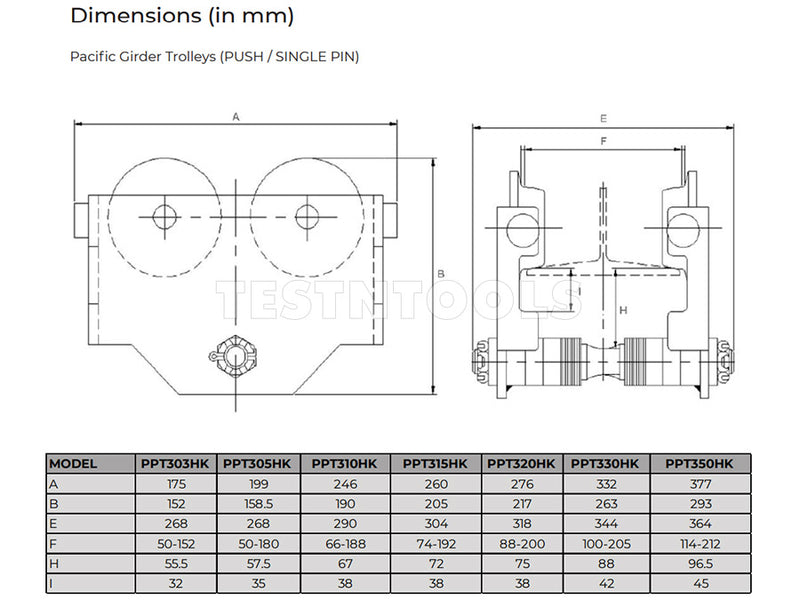

SPECIFICATIONS
Capacity 1.5 Tonne (1500 kg)
Beam flange width 74-192 mm
Single pin
Headroom 72mm
Minimum curve radius 1 m
Weight 15 kg

NOTES
> Your chain hoist, chain block, or lever hoist, etc, hooks directly onto the single pin. If there is not enough space between the top of the hook and the underside of the beam, you may need to use a master link to provide a hook mounting point. This will also rotate your lifting equipment 90 degrees, which may be a consideration if your chain hoist, etc, doesn't have a swivel hook at the top.

> For higher headroom requirements and a hook position that's natively at 90 degrees to the trolley, please see the range of 2-pin push trollies.
