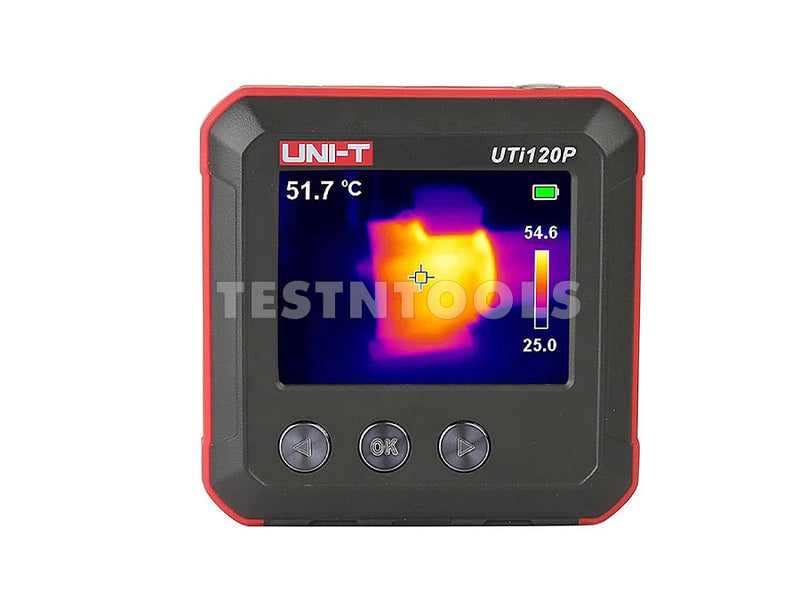

UNI-T Thermal Imager -20ºC to 400ºC UTI120P

UNI-T Thermal Imager -20ºC to 400ºC UTI120P

SKU UTI120P
Save $255.60 Save $255.60
$619.30
$619.30 - $619.30
$619.30
$363.70
$363.70 - $363.70
$363.70
Availability:
Low stock
UTi120P: Power in Your Pocket. This mini thermal camera delivers maximum portability, fitting snugly into your pocket for on-the-go troubleshooting. With automatic temperature tracking from -20°C to 400°C, it's a versatile tool for PCBA inspection, power distribution cabinet inspection, motor inspection, and other diverse applications, empowering users to swiftly identify and resolve issues anywhere.


FEATURES
> Mini and portable
> 2.4" TFT display screen (320 × 240 Pixels)
> IR resolution 120 × 90
> Storage Up to 32GB Micro SD card
> Auto alarm for high/low temperature
> Auto tracking for hot spot/cold spot
> Auto power off 5/10/30mins(default)/off
> Image capture
> Color palettes: 3(Iron, Rainbow, Grey)
> PC software analysis
> Rechargeable Li-ion battery
> 1/4" tripod mounting hole
> 1m drop proof
> Certified CE, RoHS

SPECIFICATIONS
Temperature measurement range -20? ~ 400? / -4? - 752 ?
Accuracy ±2? or ±2% whichever is greater
Emissivity 0.01 ~ 1.00 adjustable (0.95 default)
IR resolution (Pixels) 120 × 90
Display 2.4" TFT LCD (320 × 240)
Field of view(FOV) 50° × 38°
Thermal sensitivity (NETD) ?60mK
Spatial resolution (IFOV) 7.3mrad
Frame rate ?25Hz
Spectral range 8 ~ 14µm
Focus Focus Free
USB Micro USB
Image/Video storage format BMP
Battery operation time ?3.5 hours

Powered by Fixed Li-ion battery (3.7V 1350mAh)
Size 76mm × 76mm × 24mm
Weight 125g

WHAT YOU GET
1 x UTi120P Pocket-sized Thermal Camera
1 x Micro SD Card
1 x Micro USB Cable
1 x Hand strap
1 x Carrying Bag
Documents download operation guide card
User Manual


Warranty 12 months
