This is a heavy item that must be delivered by truck. The delivery charge calculated at checkout applies to town and city CBD business addresses only (and local freight depot if applicable). It does not cover working from home business addresses. Check with us if you are unsure if your address qualifies or want a quote for delivery to a home or rural delivery address.
ADDITIONAL FEATURES
> Ideal for industrial applications
> V section head houses larger bearings
> Solid one-piece cast iron feed handle
> Safety cutout switch on the belt cover
> Work light under head (bulb not included)
> Higher weight gives better stability
> Wider speed range
> Increased swing
> Beafier column
> Bigger table
FEATURES
> Tilting and rotating table
> Square table for larger work area
> T-slots for workpiece clamping
> Safety guard with flip-up chuck
> Emergency stop switch
> Heavy-duty precision depth stop
> Rack and pinion table height adjustment
> Quick action motor adjustment for belt tensioning
> Column and quill precision machined from thick wall tube for rigidity
SPECIFICATIONS
Bench mount type drill press
Maximum drilling capacity 20mm^
Chuck capacity 3-16mm
12 speeds 120 - 2580 rpm
Table size 290 x 290mm
Single phase motor 230VAC 550W
Spindle taper MT2
Spindle travel 80mm
Swing 356mm
Overall height 1000mm
Column diameter 80mm
Quill diameter 52mm
Weight 82kg
WHAT YOU GET

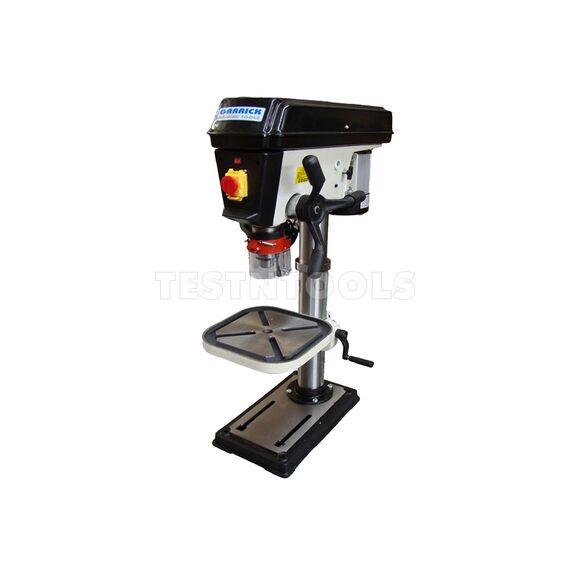

Garrick Benchmount Drill Press 20mm DB20
Drill Chuck and Arbor
Chuck Key
Drill Drift
NOTES
^ This is the maximum recommended capacity for a standard twist drill. Much higher diameters can be drilled with tct holesaws.
> Please read the User Manual before use and tighten the v-belts.
