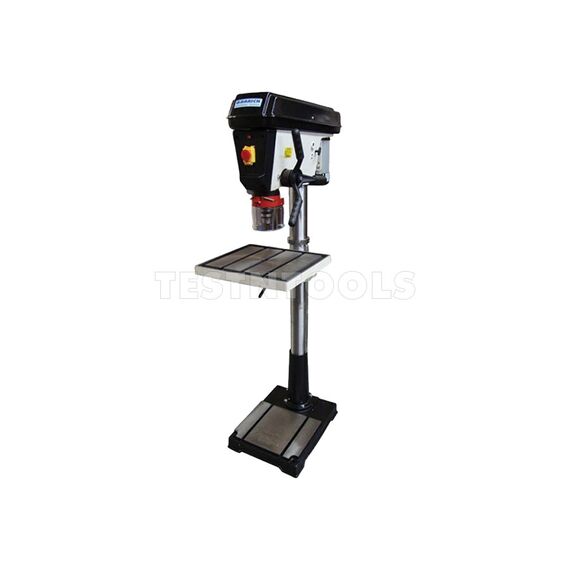

Garrick Industrial Pedestal Drill Press 32mm DP32

IMPORTANT SHIPPING INFORMATION
This is a heavy item that must be delivered by truck. The delivery charge calculated at checkout applies to town and city CBD business addresses only (and local freight depot if applicable). It does not cover working from home business addresses. Check with us if you are unsure if your address qualifies or want a quote for delivery to a home or rural delivery address.

INDUSTRIAL VERSION - This drill press is the premium version suitable for heavy-duty use in industrial workshops. The unique ‘V’ section head has been specifically designed to house larger bearings for greater arbor support and drilling accuracy.

ADDITIONAL FEATURES
> Ideal for industrial applications
> V section head houses larger bearings
> Solid one-piece cast iron feed handle
> Safety cutout switch on the belt cover
> Work light under head (bulb not included)
> Higher weight gives better stability
> A section Vee belts and pulleys
> Wider speed range
> Increased swing
> Beafier column
> Bigger table

FEATURES
> Tilting and rotating table
> Square table for larger work area
> T-slots for workpiece clamping
> Safety guard with flip-up chuck
> Emergency stop switch
> Heavy-duty precision depth stop
> Rack and pinion table height adjustment
> Quick action motor adjustment for belt tensioning
> Column and quill precision machined from thick wall tube for rigidity

SPECIFICATIONS
Pedestal type drill press
Maximum drilling capacity 32mm^
Chuck capacity 3-16mm
12 speeds 150 - 2700 rpm
Table size 475 x 425mm
Single phase motor 230VAC 1100W
Spindle taper MT4
Spindle travel 120mm
Swing 508mm
Overall height 1710mm
Column diameter 92mm
Quill diameter 72mm
Weight 143kg
