IMPORTANT SHIPPING INFORMATION
This is a heavy item that must be delivered by truck. The delivery charge calculated at checkout applies to town and city CBD business addresses only (and local freight depot if applicable). It does not cover working from home business addresses. Check with us if you are unsure if your address qualifies or want a quote for delivery to a home or rural delivery address.

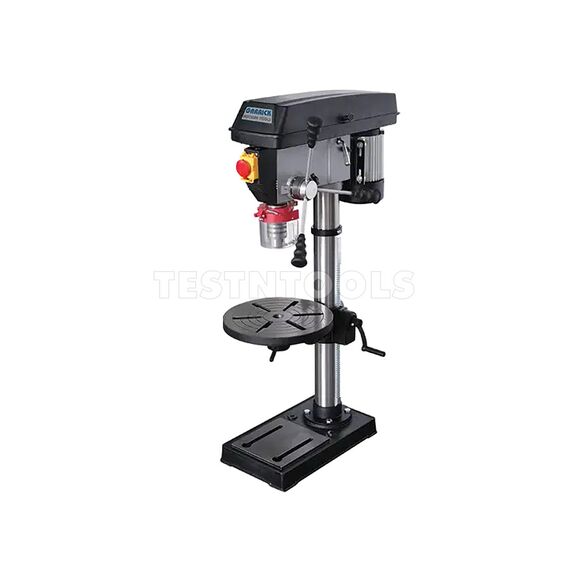

This is a great drill press for your home or light engineering workshop. The full-size floor mount pedestal format sets it at an easy working height and frees up bench space. The 20mm twist drill capacity in steel ensures you can drill even the largest of items. If you need a hole bigger than 20mm check out our Desic TCT holesaws which go up to 100mm diameter.
FEATURES
> Ideal for the workshop
> NVR (No Voltage Release) Safety Switch
> Safety Microswitch on belt guard, prevents running with unguarded belts
> Safety Guard with flip up cover for quick chuck access
> 3 piece steel handles with non-slip rubber grips
> Drilling depth gauge
> Rack & pinion height adjustment
> Cast iron table +45° to 0° to -45° table tilt left and right
> Includes Drill Chuck & Arbor, Chuck Key and Drill Drift
SPECIFICATIONS
Bench type drill press
Motor 550W
Drive Belts O Section
Max Drilling Diameter Ø 16mm
Chuck Capacity 3-16mm
Spindle Travel 80mm
No. of Speeds 16
Speeds 180-2770 / 220-3320 rpm
Spindle Taper MT2
Spindle-column Distance 162.5mm
Spindle-Table Distance 450mm
Spindle-Base Distance 630mm
Swing 325mm
Table Size Ø290mm
Base Size 420 x 250mm
Column Diameter Ø 72mm
Height 980mm
Net weight 33kg
Carton Size 770 x 450 x 260mm
NOTES
^ This is the maximum recommended capacity for a standard twist drill. Much higher diameters can be drilled with tct holesaws.
> This model is ideal for the home workshop, it is not intended for all-day constant use. If you need a commercial-grade drill press that will perform non-stop for extended periods then please consider the heavy-duty industrial version.
> Please read the User Manual before use and tighten the v-belts.
