FEATURES
- Scan and spot the unseen
- Radar technology
- Updatable
- For leakage detection
- Ideal for distance measurement
- Maximum detection depth to 200mm
- Documentation via USB-C, SD-Card
- Clear visualisation of detected objects
- Multiple views(Object view, Spot view, Signal View, Signal View 2D)
DETECTABLE OBJECTS
Magnetic metals (Iron)
Non-magnetic metals (Copper)
Live cables
Non-live cables
Low-voltage and data cables
Three-phase power cables
Cavities
Wooden substructures
Empty plastic pipes
Water-filled plastic pipes
SPECIFICATIONS
Accuracy ±5mm
Max detection depth 200mm
Dry concrete max detection depth 200mm
Early age concrete max detection depth 60mm
Other wall max detection depth 80mm
Magnetic metal max detection depth 200mm
Non magnetic metal max detection depth 80mm
Live cables max detection depth 200mm
Wooden substructures max detection depth 38mm
Dust and splash protection IP 5X
Power supply 12V Li-Ion battery (not included), 10.8V-LI ION battery (not included), 4 x 1.5 V LR6 (AA)
Weight 0.64kg
WHAT YOU GET

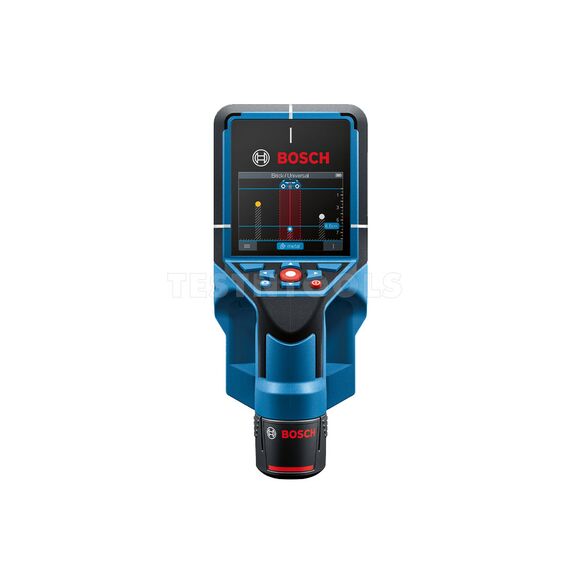

1 x Bosch Wall Scanner D-Tect 200C 06010816K0
4 x 1.5 V LR6 battery (AA)
1 x AA1 alkaline battery adapter
1 x Hand strap
1 x USB-C Cable
1 x Pouch
User manual
6 Year Warranty including Trade upon registration
Bosch part number 0 601 081 6K0
