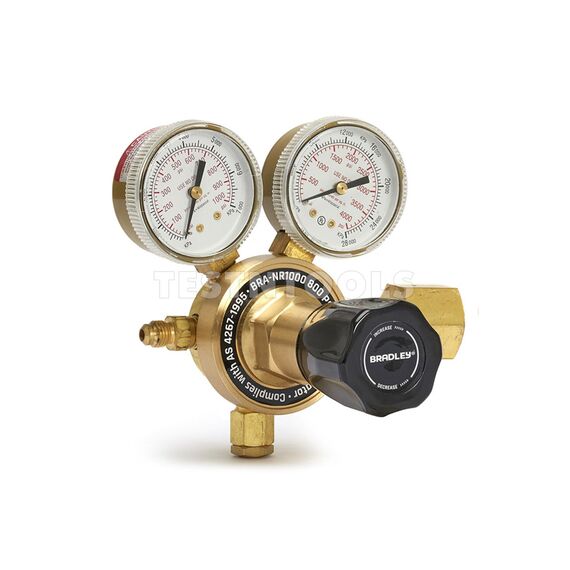

Introducing the Bradley NR1000 Nitrogen Regulator: Ideal for HVAC/R pros, it tests up to 800 psi with precision. Built tough for R410A and R32 systems, featuring durable components and handy gauges in a sleek steel case. The regulators include a porous metal inlet filter and a fine mesh filter screen between the inlet and seat.
FEATURES
> Single stage construction
> Forged brass body & bonnet
> Neoprene diaphragms
> Safety relief valve
> Inlet filter to trap impurities
> 0 – 800 psi working pressure
> Complies with AS 4267-1995
SPECIFICATIONS
Inlet fitting: type 50 connector
Outlet fitting: male 1/4" SAE
Working pressure: 0-800 psi (55 (5500 kpa)
Gauge measurements: psi & kpa
Safety valve max pressure: 800 psi
Materials: brass and alloy
Dimmensions: 180mm x 150mm x 135mm
Product weight: 1.35 kg without case, 1.70 kg with case

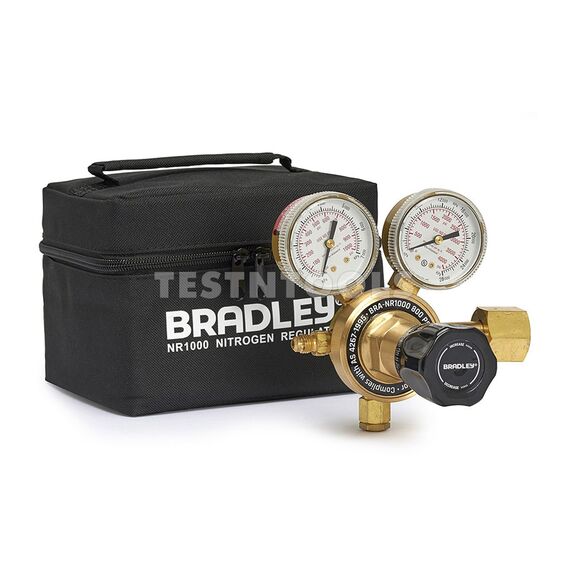

WHAT YOU GET
1 X BRA-NR1000 Nitrogen Regulator
1 x Instruction Manual
1 x Carry Bag with Zip
Warranty 12 months
