Ko-ken Tool Company is recognised as one of the leaders in the international tool production industry founded in Japan in 1946. Today over 8000 individual stock items and 4000 special customer items have been produced and inspected according to DIN, ISO and JIS standard by request.
Ko-ken Products are designed and manufactured using the latest technologies such as 3D-CAD, machining centres and computer controlled heat treatment systems in order to deliver the highest quality and most modern designed sockets and accessories.

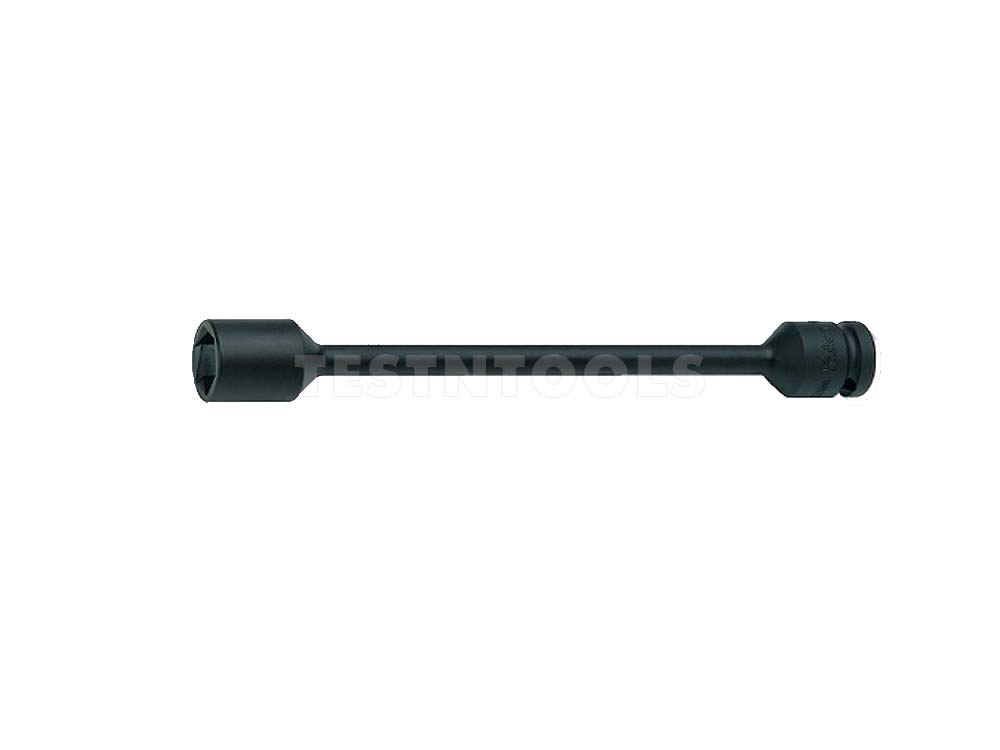

Torsion Bars are designed for tightening wheel nuts with an impact wrench. Prevent the excessive torque road. Colour coded shafts make size identification easy. As the torque could vary with the type and the condition of the impact wrench, we strongly recommend the control with a torque wrench.
FEATURES
- 14101M Impact Torsion Bar
- Automotive Tools
- For tightening only
- Use with 1/2" Dr Impact Wrench
- Set air pressure 5kgf/cm²-6kgf/cm² and adjust the torque values between 190Nm and 210Nm
SPECIFICATIONS
Size 19mm x 90Nm
Length 223mm
Shaft Colour Black
Model 14101M19090
How To Use Torsion Bar:
1. Use with a 1/2" Sq. Dr. Pneumatic impact wrench.
2. Set air pressure 0.6MPa, and set impact wrench dial Medium range.
3. Chose a suitable Torsion bar according to wheel nut size and indicated tightening torque.
4. Attach the torsion bar to impact wrench and apply load.
5. Check the actual tightening torque value with torque wrench.
6. Adjust air pressure or torque value according to the results of check 5.
7. Tight other wheel nut in diagonal order.
