FEATURES
- Closed frame style for easy removing of bent pipe
- Lightweight aluminium alloy formers with large angle of arc to support pipe during bending.
- Cross section of formers is of "elliptical" form to minimise flattening of bend
- Formers cross section is of elliptical form to minimise flattening of bend
- Solid frame fabrication eliminates flexing during bending operation
- Enclosed, maintenance-free monoblock hydraulic system with automatic piston return
- High thrust hydraulic pump for high speed working
- Easily dismantled to store or transport
- Made in New Zealand
SPECIFICATIONS
N.B. Capacity 1/2" - 2"
Piston rating 150 kN (15,000 kg)
Weight 60kg/0.10m3
FORMERS' SPECIFICATIONS
Radius Of Bend:
1/2" - 75mm
3/4" - 105mm
1" - 140mm
1.1/4" - 175mm
1.1/2" - 200mm
2" - 240mm
WHAT YOU GET

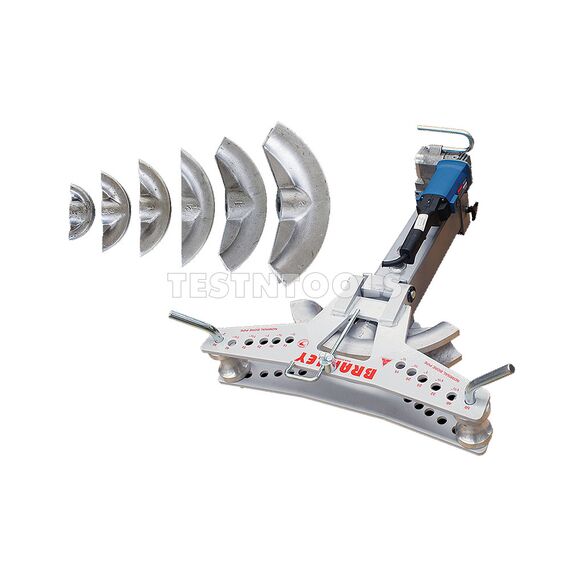

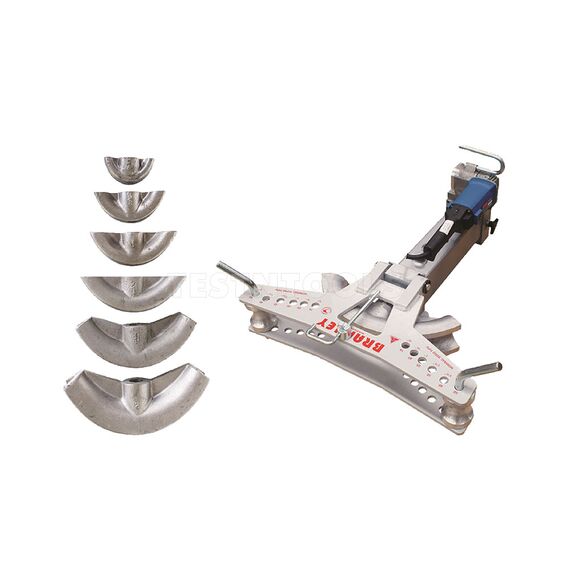

1 x Bramley Electric Hydraulic Pipe Bender
6 x Pipe formers 1/2", 3/4", 1", 1.1/4", 1.1/2" & 2"
Model 026E
Note: The Electric/Hydraulic Ram Assembly can be retrofitted to an existing Bramley 024 Manual Hydraulic Pipe Bender
