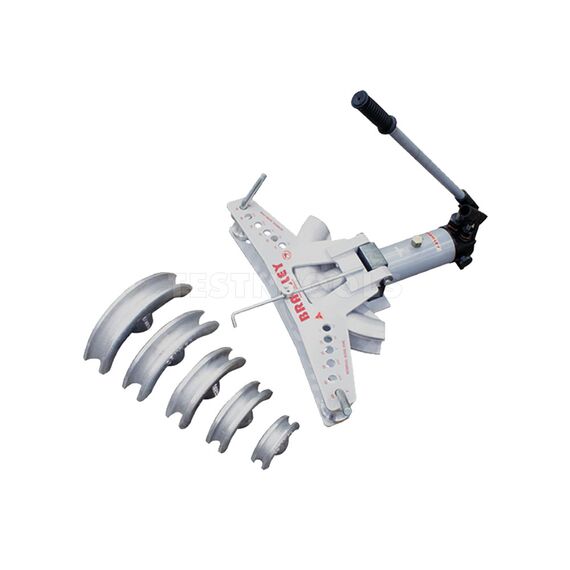

Bramley Hydraulic Pipe Bender Manual 1/2" - 2" 024

NEW VERSION IMPROVEMENTS
This model supercedes the Bramley Manual Hydraulic Pipe Bender Model 022

- NEW Hinged flip-top frame for easy pipe and former changes
- NEW Two-stage double-acting hydraulic ram for quicker bending
- NEW Radius stop pin for consistent bend angles


The Bramley Model 024 Manual Hydraulic Pipe Bender has lightweight aluminium alloy formers with a large angle of arc to support the pipe during bending. The cross-section of formers is of "elliptical" form to minimise flattening of the bend. This results in a superior quality bend.

The Solid frame fabrication eliminates flexing during bending operation. The hydraulic ram is easily removed from the frame and converts to a 12 ton jack.

FEATURES
- For pipe bending to 90 degrees
- Flip-top frame for easy pipe and former replacement
- Bending radius measuring stop
- Two-stage pump action
- Spring return ram
- Hydraulic ram can be removed and used as 12 ton jack
- Can be retro-fitted with optional additional Electric Powered Unit
- Made in New Zealand

SPECIFICATIONS
Capacity 1/2" - 2" (3mm wall thickness)
Formers' spigot size 38mm
Weight 60Kg

FORMERS' SPECIFICATIONS
Radius of Bend Centres
1/2" - 75mm
3/4" - 105mm
1" - 140mm
1-1/4" - 175mm
1-1/2" - 200mm
2" - 240mm

WHAT YOU GET
Bramley Hydraulic Pipe Bender Manual 1/2" - 2" 024
6 Formers (1/2", 3/4", 1", 1-1/4", 1-1/2", 2")
2 Bobbins (support rollers)
Pins
