IMPORTANT SHIPPING CRITERIA FOR THIS ITEM
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working from home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want to have this item delivered to a home or rural address please contact us for a quote before ordering.
FEATURES

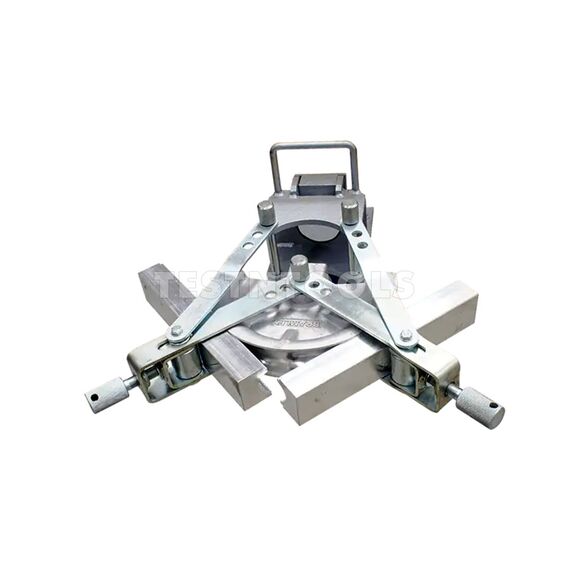

> Tube bending head unit only
> Can be retrofitted to Bramley 026E Electric Hydraulic Pipe Bender
> 180° maximum bend for producing U-bends
> Former & slipper Sets sold separately
> Made in New Zealand
SPECIFICATIONS
Capacity Mild Steel: 1" - 2" OD (2mm wall thickness)
Capacity Stainless Steel: 1" - 1.1/2" OD (1.2mm wall thickness)
Capacity Aluminium: 1" - 2" OD (2mm wall thickness)
Weight 40kg/0.05m3
FORMERS' SPECIFICATIONS (NOT INCLUDED)
Radius Of Bend:
1" (25.4mm) - 115mm
1.1/8" (28.6mm) - 115mm
1.1/4" (31.8mm) - 115mm
1.3/8" (35mm) - 140mm
1.1/2" (38mm) - 140mm
1.5/8" (41.3mm) - 140mm
1.3/4" (44.5mm) - 165mm
1.7/8" (47.6mm) - 165mm
2" (51mm) - 165mm
